Omron

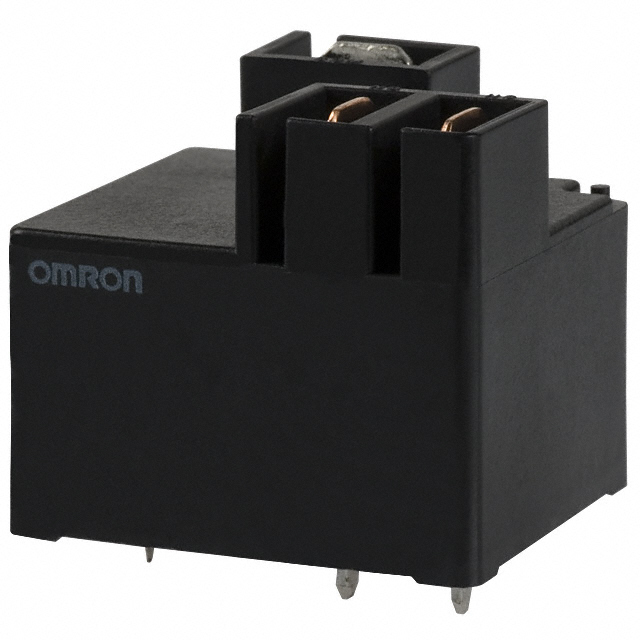

| Part Number | G8P-1C4TP DC24 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 10A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4498 pcs | Data sheet | G8P-1C4TP DC24.pdf |
| Turn On Voltage (Max) | 18 VDC | Turn Off Voltage (Min) | 2.4 VDC |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) | Switching Voltage | 250VAC, 28VDC - Max |
| Series | G8P | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | G6J 3038H G8P-1C4TP-DC24 G8P1C4TP24DC G8P1C4TPDC24 G8P1C4TPDC24BYOMZ G8PT6025D Z214 |
Operating Temperature | -55°C ~ 105°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class F, Sealed - Fully |
| Detailed Description | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Contact Form | SPDT (1 Form C) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 660 Ohms | Coil Power | 900 mW |
| Coil Current | 36.0mA |
