Omron

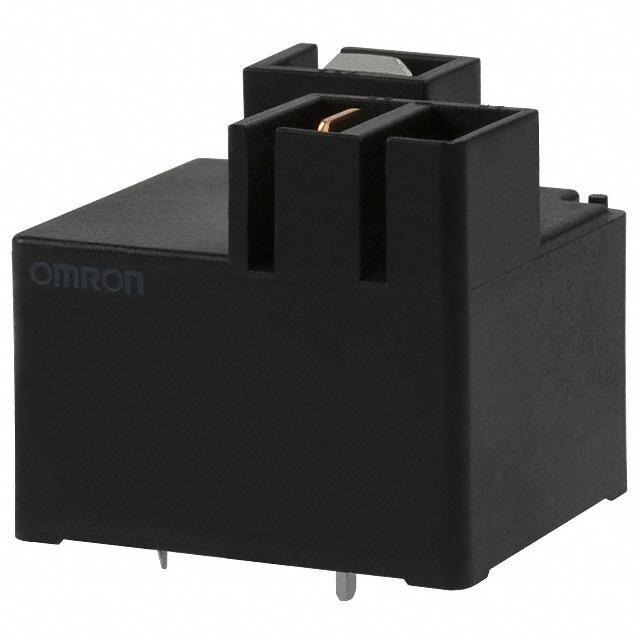

| Part Number | G8P-1A4TP DC5 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5440 pcs | Data sheet | G8P-1A4TP DC5.pdf |
| Turn On Voltage (Max) | 3.75 VDC | Turn Off Voltage (Min) | 0.5 VDC |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) | Switching Voltage | 250VAC, 28VDC - Max |
| Series | G8P | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | G8P-1A4TP-DC5BYOMZ G8P-1A4TPDC5 G8P-1A4TPDC5-ND G8P1A4TP5DC G8P1A4TPDC5 G8P1A4TPDC5BYOMZ G8PT5038M G8PT5041M Z3311 |
Operating Temperature | -55°C ~ 105°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Fully | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole |
| Contact Rating (Current) | 30A | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 5VDC |
| Coil Type | Non Latching | Coil Resistance | 27 Ohms |
| Coil Power | 900 mW | Coil Current | 185mA |
