D2F-01L3-D

Omron

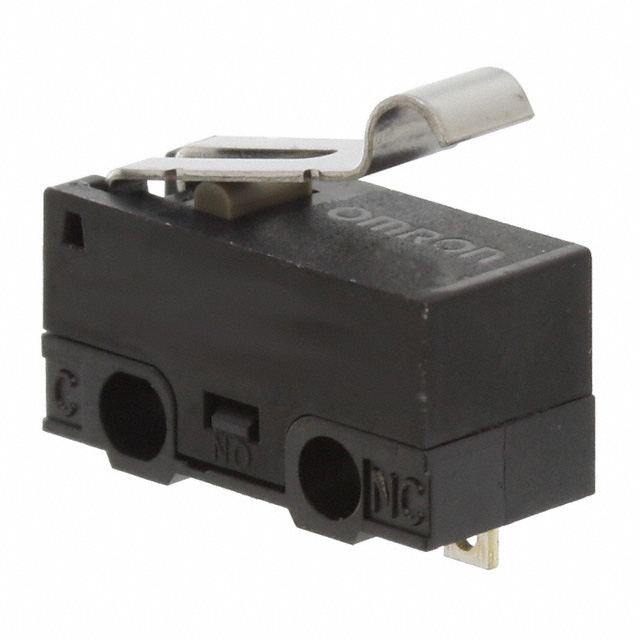

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D2F-01L3-D
Manufacturer/Brand:	Omron
Product description	SWITCH SNAP ACTION SPDT 100MA
Datasheets:	D2F-01L3-D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47532 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 47532 pcs

Reference Price (In US Dollars)

1 pcs: $1.21

10 pcs: $1.116

25 pcs: $1.046

50 pcs: $1.023

100 pcs: $0.814

250 pcs: $0.767

750 pcs: $0.721

1500 pcs: $0.674

5250 pcs: $0.628

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D2F-01L3-D

Part Number	D2F-01L3-D	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 100MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47532 pcs	Data sheet	D2F-01L3-D.pdf
Voltage Rating - DC	30V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	D2F
Release Force	5.099gf	Pretravel	-
Packaging	Bulk	Overtravel	0.020" (0.5mm)
Other Names	D2F-01L3-D-ND D2F01L3D Z10716	Operating Temperature	-25°C ~ 65°C
Operating Position	0.335" (8.5mm)	Operating Force	80gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.018" (0.45mm)
Current Rating	100mA (DC)	Circuit	SPDT
Actuator Type	Lever, Simulated Roller
