Z-15HW24-B

Omron Automation & Safety

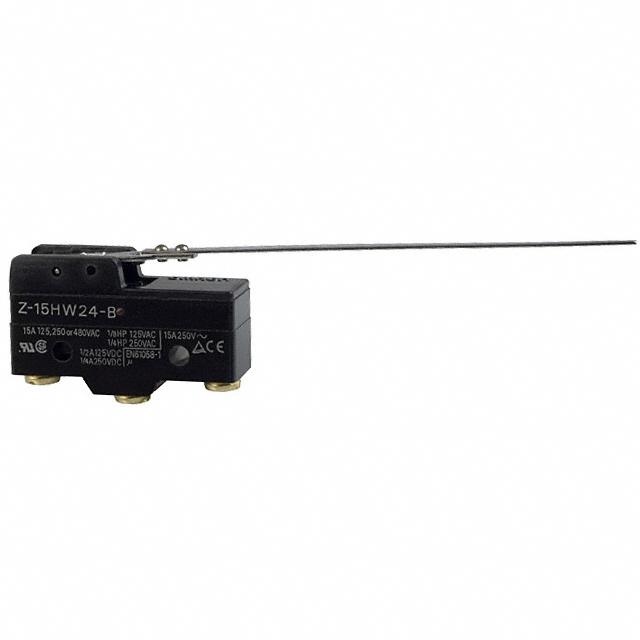

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15HW24-B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 15A 125V
Datasheets:	Z-15HW24-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11059 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11059 pcs

Reference Price (In US Dollars)

1 pcs: $6.354

10 pcs: $4.928

25 pcs: $4.669

50 pcs: $4.409

100 pcs: $4.02

250 pcs: $3.761

500 pcs: $3.631

1000 pcs: $3.501

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.354

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15HW24-B

Part Number	Z-15HW24-B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11059 pcs	Data sheet	Z-15HW24-B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	0.500gf
Pretravel	0.780" (19.8mm)	Packaging	Bulk
Overtravel	0.394" (10.0mm)	Other Names	SW198 Z15HW24-B Z15HW24-B7-K Z15HW24B
Operating Temperature	-25°C ~ 80°C	Operating Position	0.780" (19.8mm)
Operating Force	6.000gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	1 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP00	Features	-
Electrical Life	500,000 Cycles	Differential Travel	0.080" (2.0mm)
Current Rating	15A (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Lever, Straight
