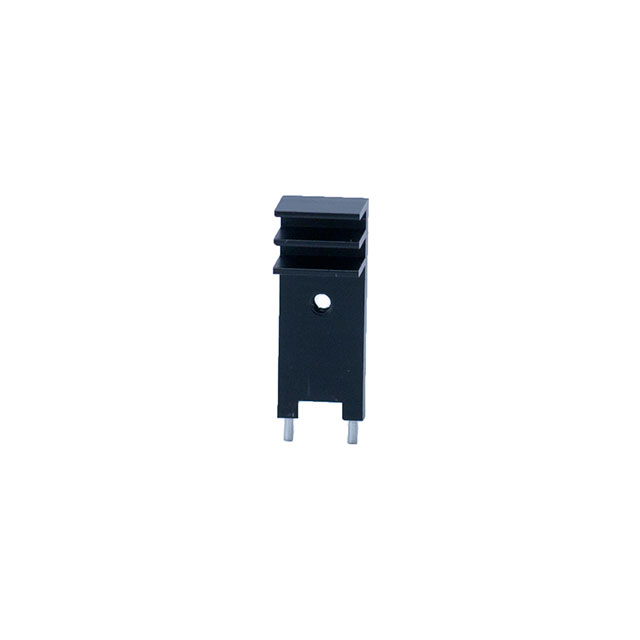

CSM221-12AE

Ohmite

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSM221-12AE
Manufacturer/Brand:	Ohmite
Product description	HEATSINK BLACK ANODIZED
Datasheets:	CSM221-12AE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	96177 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 96177 pcs

Reference Price (In US Dollars)

1 pcs: $0.298

10 pcs: $0.284

25 pcs: $0.27

50 pcs: $0.262

100 pcs: $0.259

250 pcs: $0.241

500 pcs: $0.227

1000 pcs: $0.206

5000 pcs: $0.199

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.298

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSM221-12AE

Part Number	CSM221-12AE	Manufacturer	Ohmite
Description	HEATSINK BLACK ANODIZED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	96177 pcs	Data sheet	CSM221-12AE.pdf
Width	0.492" (12.50mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	18.00°C/W	Thermal Resistance @ Forced Air Flow	-
Shape	Rectangular, Fins	Series	CSM
Power Dissipation @ Temperature Rise	2.0W @ 44°C	Package Cooled	TO-220
Moisture Sensitivity Level (MSL)	Not Applicable	Material Finish	Black Anodized
Material	Aluminum	Manufacturer Standard Lead Time	20 Weeks
Length	0.472" (12.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	1.228" (31.20mm)	Diameter	-
Detailed Description	Heat Sink TO-220 Aluminum 2.0W @ 44°C Board Level, Vertical	Attachment Method	Solderable Feet
