NorComp

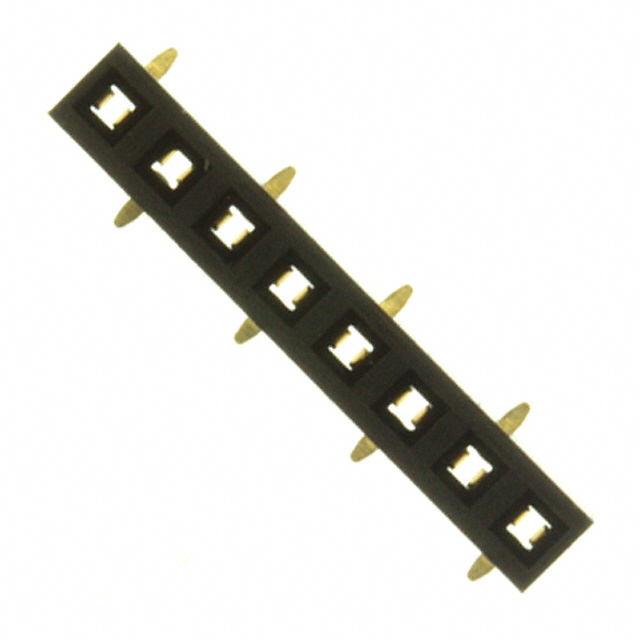

| Part Number | 28630806RP2 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN RECEPTACLE 2MM 8-POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101065 pcs | Data sheet | 28630806RP2.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | - | Series | 2863 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 2863S-08 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.170" (4.32mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
