Nichicon
| Part Number | UCS2C151MHD1TN | Manufacturer | Nichicon |
|---|---|---|---|

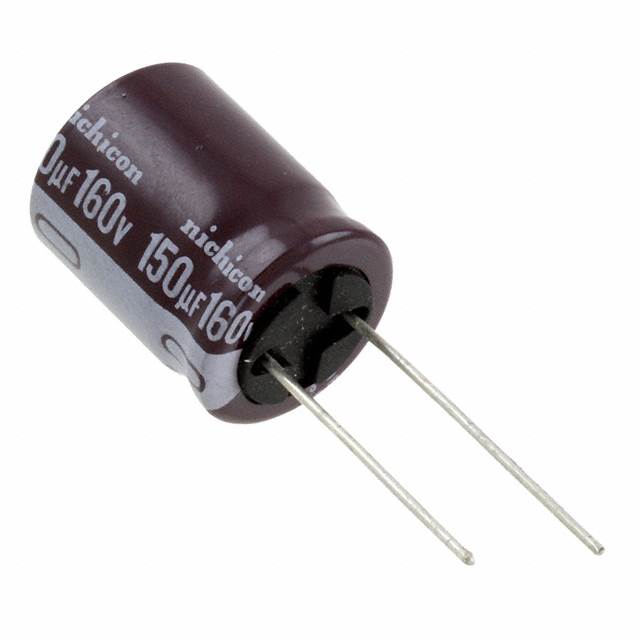

| Description | CAP ALUM 150UF 20% 160V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 135992 pcs | Data sheet | 1.UCS2C151MHD1TN.pdf2.UCS2C151MHD1TN.pdf |
| Voltage - Rated | 160V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.630" Dia (16.00mm) |
| Series | UCS | Ripple Current @ Low Frequency | 945mA @ 120Hz |
| Ripple Current @ High Frequency | 1.89A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Tape & Box (TB) |
| Package / Case | Radial, Can | Other Names | 493-7378-2 493-7378-2-ND 493-7378-3 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 31 Weeks |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | Lead Spacing | 0.295" (7.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.866" (22.00mm) |
| ESR (Equivalent Series Resistance) | - | Detailed Description | 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C |
| Capacitance | 150µF | Applications | General Purpose |
