Nichicon
| Part Number | UCD1V470MCL1GS | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 47UF 20% 35V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 826873 pcs | Data sheet | 1.UCD1V470MCL1GS.pdf2.UCD1V470MCL1GS.pdf3.UCD1V470MCL1GS.pdf |
| Voltage - Rated | 35V | Tolerance | ±20% |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Size / Dimension | 0.248" Dia (6.30mm) |
| Series | UCD | Ripple Current @ Low Frequency | 120mA @ 120Hz |
| Ripple Current @ High Frequency | 240mA @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 493-6426-2 UCD1V470MCL1GS-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 29 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 360 mOhms |
| Height - Seated (Max) | 0.240" (6.10mm) | ESR (Equivalent Series Resistance) | - |

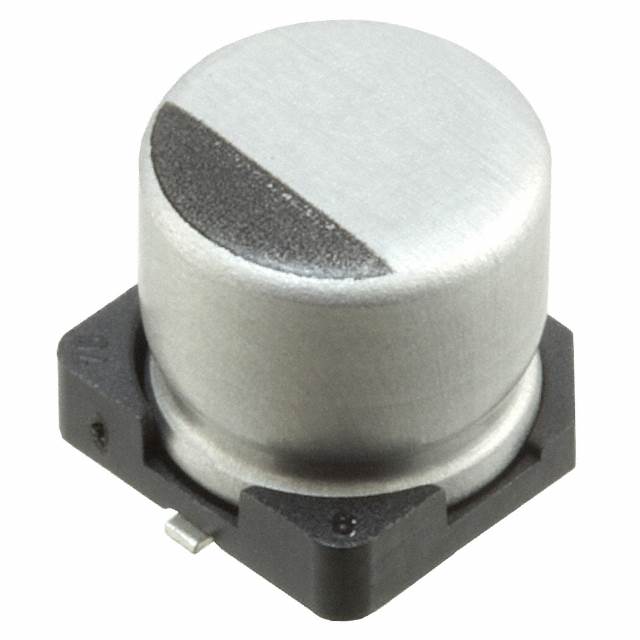

| Detailed Description | 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C | Capacitance | 47µF |
| Applications | General Purpose |
