Nichicon

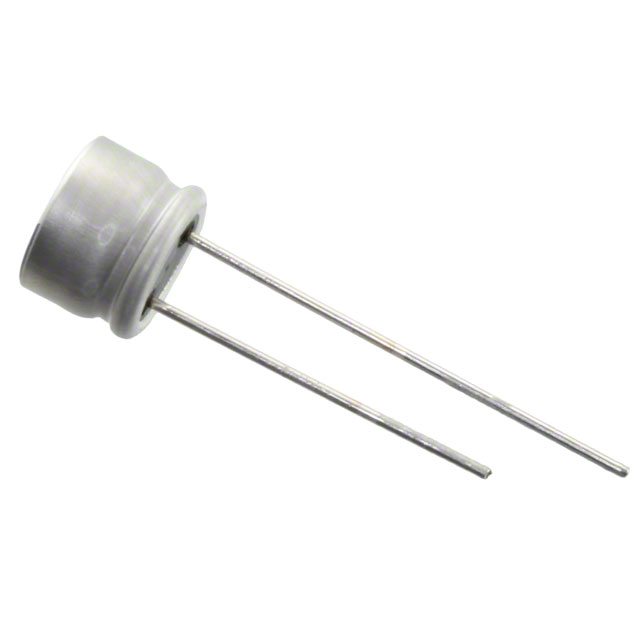

| Part Number | PLS0G561MCL2TD | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM POLY 560UF 20% 4V T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128905 pcs | Data sheet | 1.PLS0G561MCL2TD.pdf2.PLS0G561MCL2TD.pdf |
| Voltage - Rated | 4V | Type | Polymer |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.315" Dia (8.00mm) | Series | PLS |
| Ripple Current @ High Frequency | 3.9A @ 100kHz | Ratings | - |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Can |
| Other Names | 493-14155-2 493-14155-2-ND 493-14155-3 PLS0G561MCL2TD-ND |
Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Lead Spacing | 0.138" (3.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.276" (7.00mm) | ESR (Equivalent Series Resistance) | 15 mOhm |
| Detailed Description | 560µF 4V Aluminum Polymer Capacitor Radial, Can 15 mOhm 5000 Hrs @ 105°C | Capacitance | 560µF |
| Applications | General Purpose |
