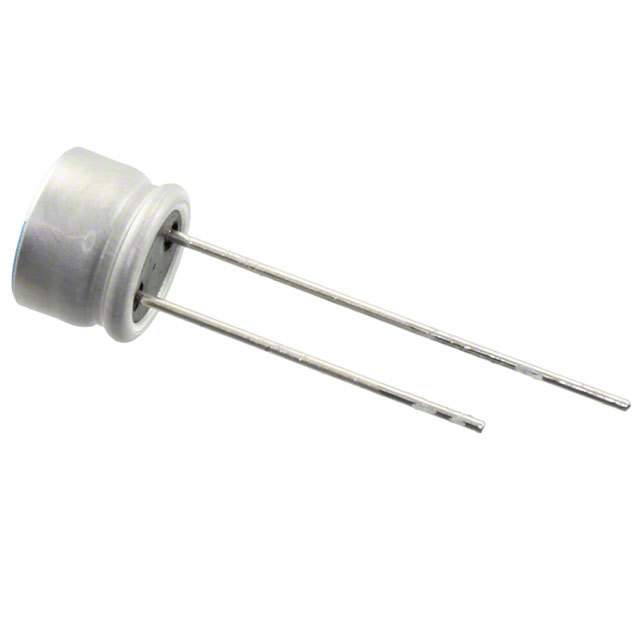

Nichicon
| Part Number | PLF1E220MCL7TD | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM POLY 22UF 20% 25V T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 168503 pcs | Data sheet | 1.PLF1E220MCL7TD.pdf2.PLF1E220MCL7TD.pdf |
| Voltage - Rated | 25V | Type | Polymer |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.315" Dia (8.00mm) | Series | PLF |
| Ripple Current @ High Frequency | 1.8A @ 100kHz | Ratings | - |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Can |
| Other Names | 493-14127-2 493-14127-2-ND 493-14127-3 PLF1E220MCL7TD-ND |
Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | 0.138" (3.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.276" (7.00mm) | ESR (Equivalent Series Resistance) | 50 mOhm |
| Detailed Description | 22µF 25V Aluminum Polymer Capacitor Radial, Can 50 mOhm 2000 Hrs @ 105°C | Capacitance | 22µF |
| Applications | General Purpose |
