ADT001-10E

NVE Corporation

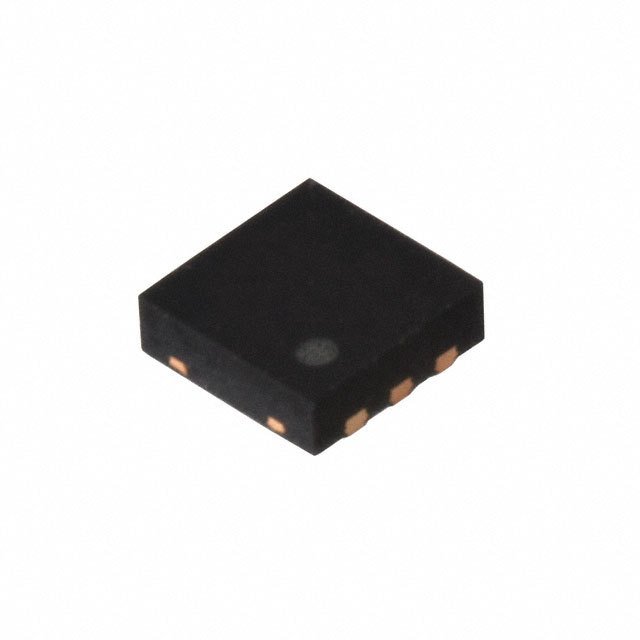

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADT001-10E
Manufacturer/Brand:	NVE Corporation
Product description	SENSOR ROTARY 360DEG SOLDER PAD
Datasheets:	ADT001-10E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31888 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31888 pcs

Reference Price (In US Dollars)

1 pcs: $2.459

5 pcs: $2.17

10 pcs: $1.917

25 pcs: $1.556

50 pcs: $1.375

100 pcs: $1.338

500 pcs: $1.121

1000 pcs: $1.049

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.459

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADT001-10E

Part Number	ADT001-10E	Manufacturer	NVE Corporation
Description	SENSOR ROTARY 360DEG SOLDER PAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31888 pcs	Data sheet	ADT001-10E.pdf
Voltage - Supply	2.45 V ~ 5.5 V	Termination Style	SMD (SMT) Tab
Technology	Magnetoresistive	Supplier Device Package	6-TDFN (2.5x2.5)
Series	-	Rotation Angle - Electrical, Mechanical	0° ~ 360°, Continuous
Resistance Tolerance	-	Packaging	Strip
Package / Case	6-WDFN Exposed Pad	Output Signal	Logic
Output	Digital	Other Names	391-1077 391-1077-1 391-1077-1-ND
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Linearity	±3°	Linear Range	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Measuring	Rotary Position
Detailed Description	Magnetoresistive Sensor Rotary Position External Magnet, Included SMD (SMT) Tab	Actuator Type	External Magnet, Included
