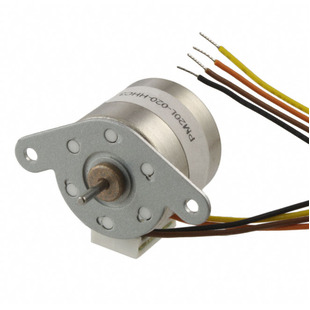

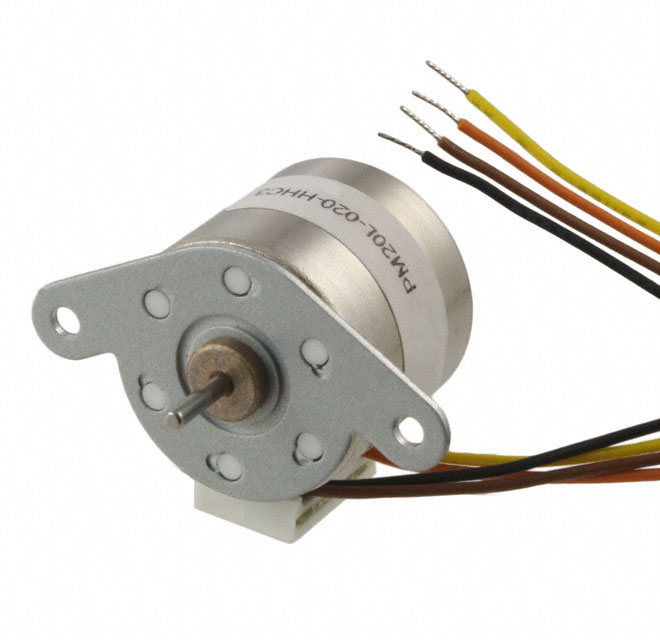

NMB Technologies Corp.
| Part Number | PM20L-020-HHC3 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3793 pcs | Data sheet | 1.PM20L-020-HHC3.pdf2.PM20L-020-HHC3.pdf3.PM20L-020-HHC3.pdf |
| Weight | - | Voltage - Rated | 24VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | 2.1 / 15 |
| Termination Style | Wire Leads | Steps per Revolution | 20 |
| Step Angle | 18° | Size / Dimension | Round - 0.787" Dia (20.00mm) |
| Series | PM | Rotor Inertia | - |
| Other Names | P14337 PM20L-020-HHC3B PM20L020HHC3 |
Operating Temperature | - |
| Mounting Hole Spacing | 1.100" (28.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Shaft and Bearing | 0.315" (8.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.059" (1.50mm) | Detailed Description | Bipolar Stepper Motor 400mA 24VDC |
| Current Rating | 400mA | Coil Type | Bipolar |
| Coil Resistance | 13 Ohms | Approvals | - |
| Accuracy | - |
