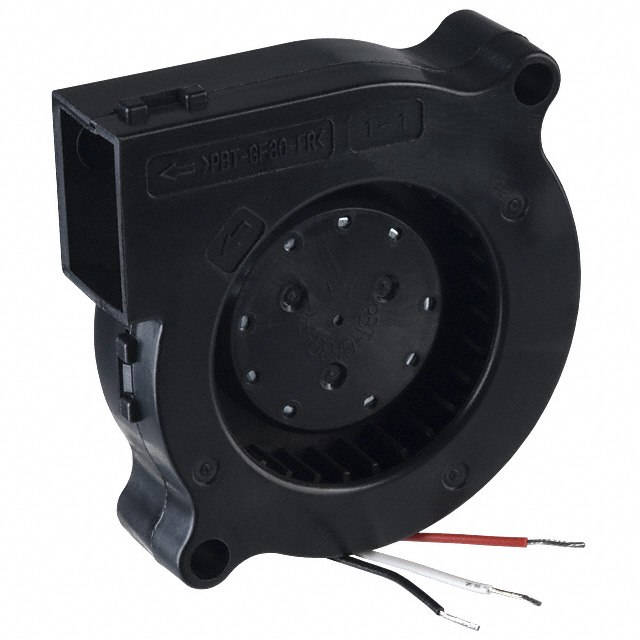

NMB Technologies Corp.
| Part Number | BM5115-04W-B39-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN BLOWER 51X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15548 pcs | Data sheet | 1.BM5115-04W-B39-L00.pdf2.BM5115-04W-B39-L00.pdf3.BM5115-04W-B39-L00.pdf |
| Width | 15.00mm | Weight | 0.055 lb (24.95g) |
| Voltage Range | 12 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.241 in H2O (60.0 Pa) |
| Size / Dimension | Square/Rounded - 51mm L x 51mm H | Series | BM |
| RPM | 3500 RPM | Power (Watts) | 720mW |
| Other Names | 05115GA-12L-AL-00 BM511504WB39L00 BM511504WB39L00-ND |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 26.0 dB | Material - Frame | Plastic |
| Material - Blade | Plastic | Manufacturer Standard Lead Time | 14 Weeks |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Blower | Current Rating | 0.060A |
| Bearing Type | Ball | Approvals | CE, CSA, UL, VDE |
| Air Flow | 2.1 CFM (0.059m³/min) |
