Part Number | 34KM-K206-99W | Manufacturer | NMB Technologies Corp. |
---|---|---|---|

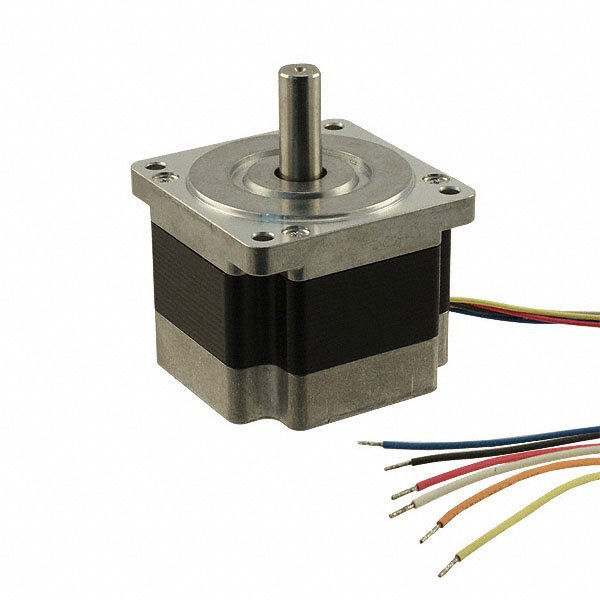

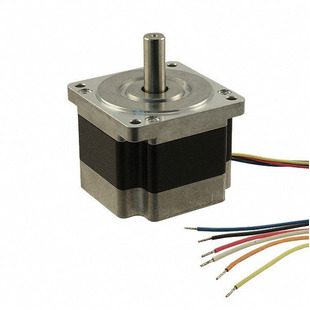

Description | STEP MOTOR HYBRID DUAL SHAFT 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 394 pcs | Data sheet | 1.34KM-K206-99W.pdf2.34KM-K206-99W.pdf |
Weight | 8.8 lbs (4kg) | Voltage - Rated | 24VDC |
Type | Hybrid, Dual Shaft | Torque - Holding (oz-in / mNm) | 948.92 / 6700 |
Termination Style | Wire Leads | Steps per Revolution | 200 |
Step Angle | 1.8° | Size / Dimension | Square - 3.347" x 3.347" (85.00mm x 85.00mm) |
Series | 34KM | Rotor Inertia | 3700gcm² |
Other Names | 34KMK20699W P14332 |
Operating Temperature | -10°C ~ 50°C |
NEMA Frame Size | 34 | Mounting Hole Spacing | 2.740" (69.60mm) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
Length - Shaft and Bearing | 1.457" (37.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Features | Double Flatted Shaft | Diameter - Shaft | 0.551" (14.00mm) |
Detailed Description | Unipolar Stepper Motor Hybrid, Dual Shaft Frame Size 34 200 Step 4.7A 24VDC | Current Rating | 4.7A |
Coil Type | Unipolar | Coil Resistance | 850 mOhms |
Approvals | - | Accuracy | ±5% |
