NMB Technologies Corp.

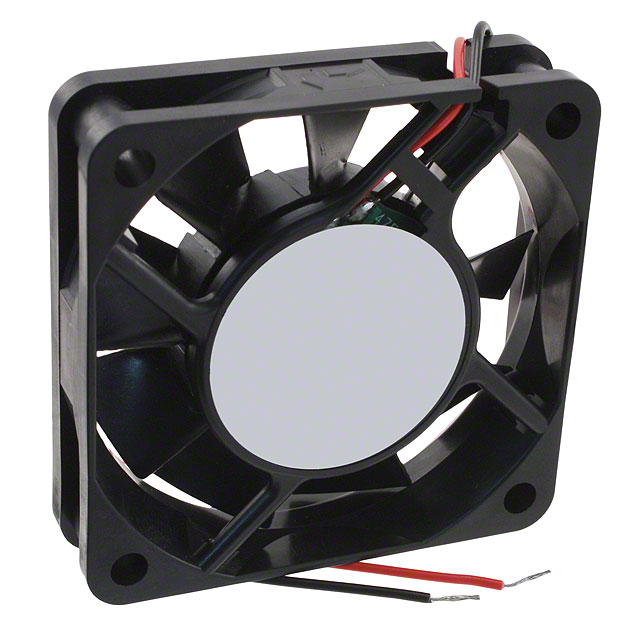

| Part Number | 2406KL-05W-B50-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 60X15MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13879 pcs | Data sheet | 1.2406KL-05W-B50-L00.pdf2.2406KL-05W-B50-L00.pdf3.2406KL-05W-B50-L00.pdf |
| Width | 15.00mm | Weight | 0.099 lb (44.91g) |
| Voltage Range | 10 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.205 in H2O (51.2 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | 06015KA |
| RPM | 4600 RPM | Power (Watts) | 2.40W |
| Other Names | 06015KA-24N-AA-00 2406KL05WB50L00 P12829 |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Noise | 34.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 70000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.100A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 18.3 CFM (0.512m³/min) |
