23KM-K743-00V

NMB Technologies Corp.NMB Technologies Corp.

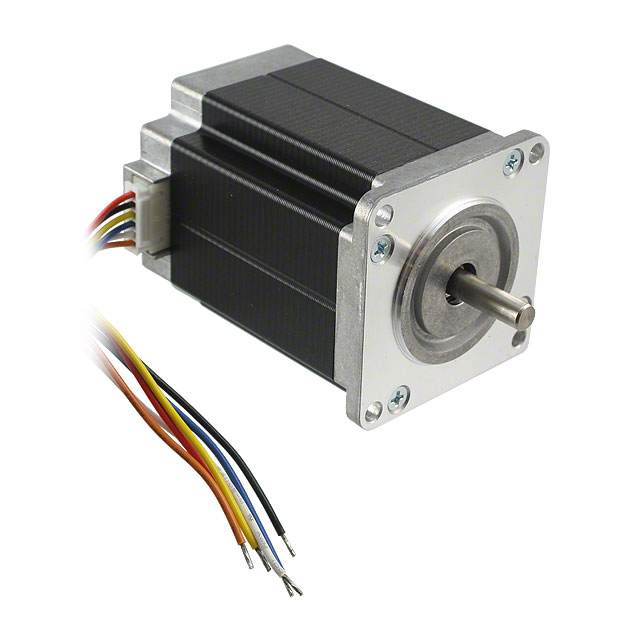

23KM-K743-00V Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 23KM-K743-00V
Manufacturer/Brand: NMB Technologies Corp.
Product description STEP MOTOR HYBRID UNIPOLAR 24V
Datasheets: 1.23KM-K743-00V.pdf2.23KM-K743-00V.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1349 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1349 pcs
Reference Price (In US Dollars)
1 pcs
$28.061
5 pcs
$27.567
10 pcs
$27.075
25 pcs
$26.582
50 pcs
$26.189
100 pcs
$25.598
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$28.061

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 23KM-K743-00V

Part Number 23KM-K743-00V Manufacturer NMB Technologies Corp.
Description STEP MOTOR HYBRID UNIPOLAR 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1349 pcs Data sheet 1.23KM-K743-00V.pdf2.23KM-K743-00V.pdf
Weight 2.3 lbs (1kg) Voltage - Rated 24VDC
Type Hybrid Torque - Holding (oz-in / mNm) 198.28 / 1400
Termination Style Wire Leads with Connector Steps per Revolution 200
Step Angle 1.8° Size / Dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm)
Series 23KM Rotor Inertia 360gcm²
Other Names 23KMK74300V
P14293
Operating Temperature -10°C ~ 50°C
NEMA Frame Size 23 Mounting Hole Spacing 1.856" (47.14mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 4 Weeks
Length - Shaft and Bearing 0.984" (25.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Flatted Shaft Diameter - Shaft 0.250" (6.35mm)
Detailed Description Unipolar Stepper Motor Frame Size 23 200 Step 3A 24VDC Current Rating 3A
Coil Type Unipolar Coil Resistance 1.1 Ohms
Approvals - Accuracy ±5%
