Part Number | 23KM-K049-99V | Manufacturer | NMB Technologies Corp. |
---|---|---|---|

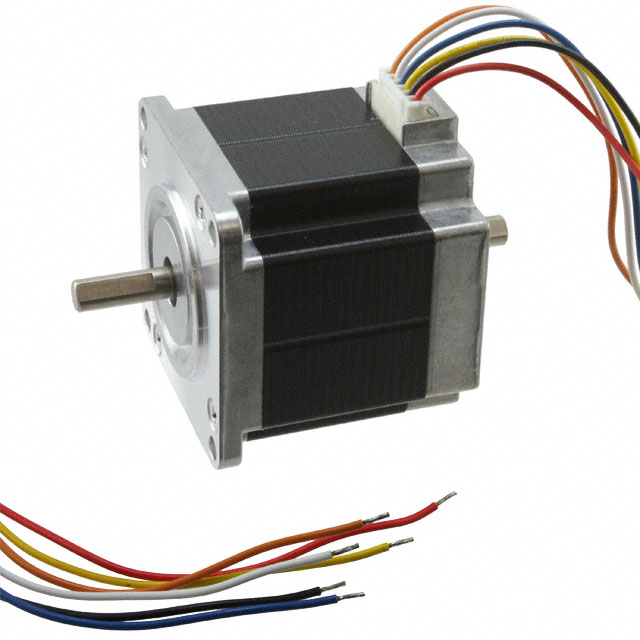

Description | STEP MOTOR HYBRID DUAL SHAFT 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 1368 pcs | Data sheet | 1.23KM-K049-99V.pdf2.23KM-K049-99V.pdf |
Weight | 1.5 lbs (680.4g) | Voltage - Rated | 24VDC |
Type | Hybrid, Dual Shaft | Torque - Holding (oz-in / mNm) | 127.47 / 900 |
Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
Step Angle | 1.8° | Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
Series | 23KM | Rotor Inertia | 200gcm² |
Other Names | 23KMK04999V P14286 |
Operating Temperature | -10°C ~ 50°C |
NEMA Frame Size | 23 | Mounting Hole Spacing | 1.856" (47.14mm) |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
Length - Shaft and Bearing | 0.984" (25.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Features | Flatted Shaft | Diameter - Shaft | 0.250" (6.35mm) |
Detailed Description | Unipolar Stepper Motor Hybrid, Dual Shaft Frame Size 23 200 Step 2A 24VDC | Current Rating | 2A |
Coil Type | Unipolar | Coil Resistance | 1.7 Ohms |
Approvals | - | Accuracy | ±5% |
