NMB Technologies Corp.

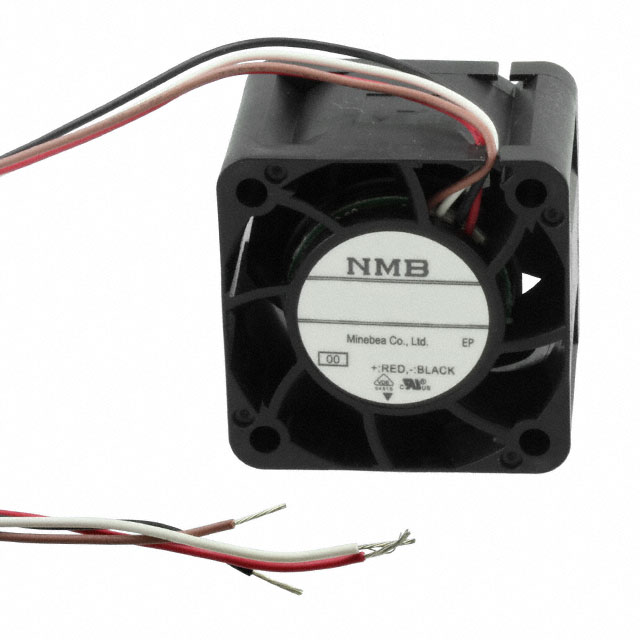

| Part Number | 03828DA-12Q-AU-00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN 12VDC 38X28MM 4WR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8948 pcs | Data sheet | 1.03828DA-12Q-AU-00.pdf2.03828DA-12Q-AU-00.pdf |
| Width | 28.00mm | Weight | 0.104 lb (47.17g) |
| Voltage Range | 7 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 4 Wire Leads | Static Pressure | 2.160 in H2O (540.0 Pa) |
| Size / Dimension | Square - 38mm L x 38mm H | Series | 03828DA |
| RPM | 20000 RPM | Power (Watts) | 5.90W |
| Other Names | 03828DA-12Q-AU-00-ND 1511FB-04W-B76-B50 P17082 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 55.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.490A | Bearing Type | Ball |
| Approvals | cUL, UL, VDE | Air Flow | 19.4 CFM (0.543m³/min) |
