NKK Switches

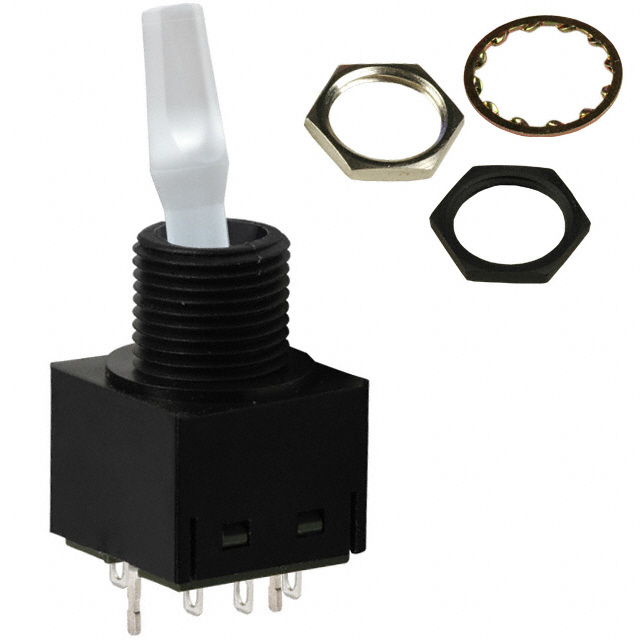

| Part Number | TL22DNAW016B | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10178 pcs | Data sheet | TL22DNAW016B.pdf |
| Voltage Rating - DC | 12V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-On |
| Series | TL | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-1713 360-1713-ND 360-1942 TL22DNAW016B-RO |
| Operating Temperature | -10°C ~ 55°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Illumination Voltage (Nominal) | 3.3 VDC | Illumination Type, Color | LED, White |
| Illumination | Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 25,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 6A (AC/DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Flatted |
| Actuator Material | Polycarbonate (PC) | Actuator Length | 17.50mm |
