SS314MAH4

NKK Switches

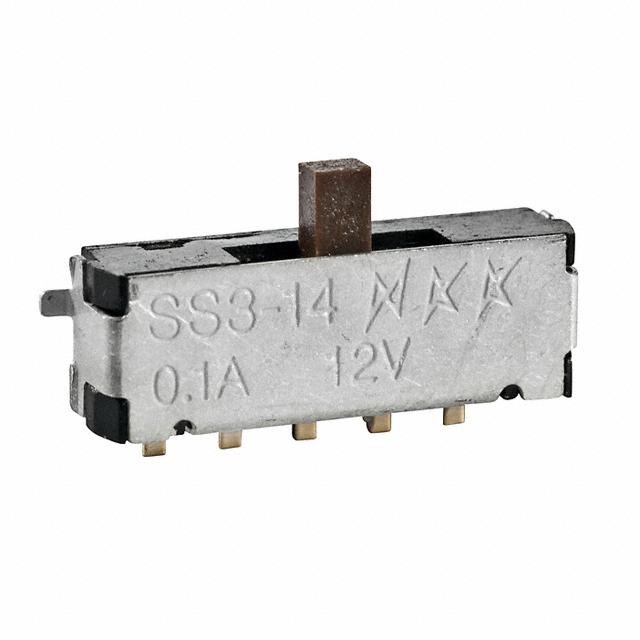

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SS314MAH4
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE SPDT 0.4VA 28V
Datasheets:	SS314MAH4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52798 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 52798 pcs

Reference Price (In US Dollars)

1 pcs: $1.213

10 pcs: $1.164

25 pcs: $1.113

50 pcs: $0.987

100 pcs: $0.961

250 pcs: $0.949

500 pcs: $0.784

1000 pcs: $0.734

5000 pcs: $0.683

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SS314MAH4

Part Number	SS314MAH4	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52798 pcs	Data sheet	SS314MAH4.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	Gull Wing	Switch Travel	2.00mm
Switch Function	On-Off-On	Series	SS3
Packaging	Tray	Other Names	360-2925 SS314MAH4-ND SS314MAH4-RO SS314MAH4-RO-ND
Operating Temperature	-25°C ~ 85°C	Operating Force	-
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Slide Switch SPDT Surface Mount, Right Angle
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Phosphor Bronze	Contact Finish	Gold
Circuit	SPDT	Actuator Type	Standard
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Length	2.00mm
