NKK Switches

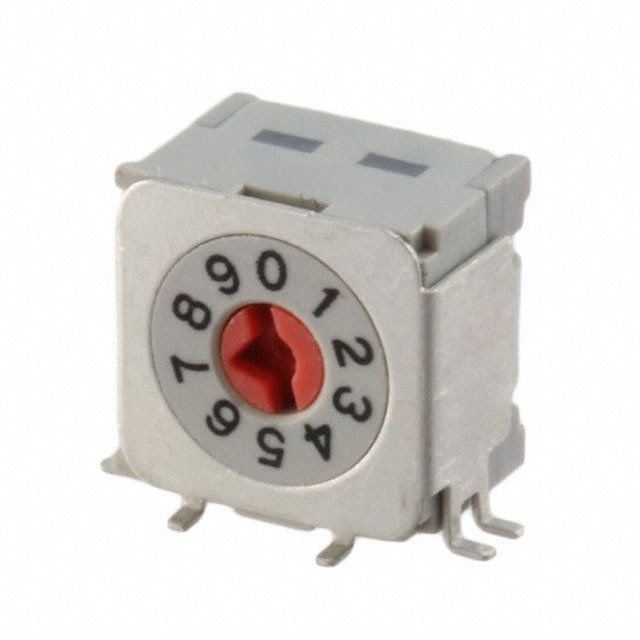

| Part Number | ND3FC10H-R | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SW ROTARY DIP BCD COMP 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27159 pcs | Data sheet | ND3FC10H-R.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | Gull Wing | Series | ND3 |
| Pitch | 0.050" (1.27mm), Half | Packaging | Tape & Reel (TR) |
| Other Names | 360-3294-2 ND3FC10H-R-RO ND3FC10H-R-RO-ND ND3FC10H-R-ROTR ND3FC10H-R-ROTR-ND ND3FC10H-RTR ND3FC10H-RTR-ND ND3FC10HR |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 20,000 Steps |
| Manufacturer Standard Lead Time | 10 Weeks | Length | 0.320" (8.13mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.316" (8.03mm) |
| Features | Epoxy Sealed Terminals | Electrical Life | 20,000 Steps |
| Detailed Description | Dip Switch BCD Complement 10 Position Surface Mount, Right Angle Rotary for Tool Actuator 100mA 5VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | BCD Complement | California Prop 65 | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Body Material | Polyamide (PA), Nylon, Glass Filled | Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
