JL15SKSCCP2

NKK Switches

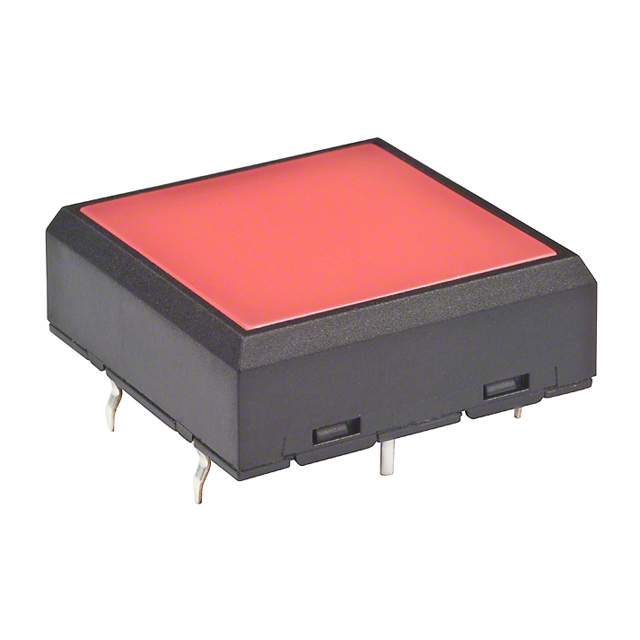

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JL15SKSCCP2
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JL15SKSCCP2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6910 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6910 pcs

Reference Price (In US Dollars)

1 pcs: $6.485

10 pcs: $6.301

25 pcs: $5.93

50 pcs: $5.559

100 pcs: $4.929

250 pcs: $4.818

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.485

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JL15SKSCCP2

Part Number	JL15SKSCCP2	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6910 pcs	Data sheet	JL15SKSCCP2.pdf
Termination Style	PC Pin	Switch Travel	0.75mm
Switch Function	Off-Mom	Series	JL
Packaging	Tray	Outline	22.00mm x 22.00mm
Other Names	JL15SKSCCP2-RO JL15SKSCCP2-RO-ND	Operating Temperature	-25°C ~ 50°C
Operating Force	300gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	3.9 VDC
Illumination Type, Color	LED, Red	Illumination	Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	Polycarbonate (PC)	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	7.85mm
