NKK Switches

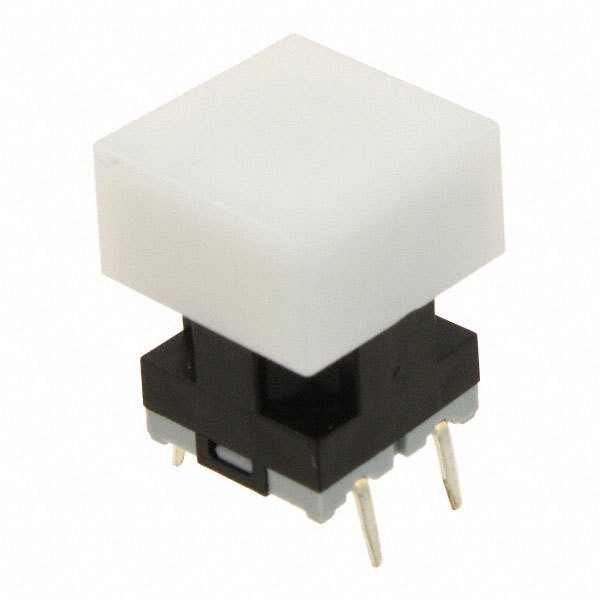

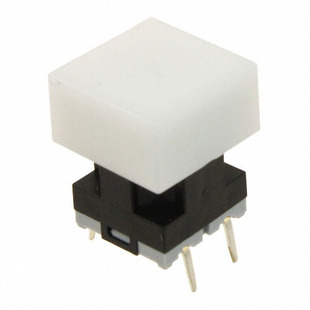

| Part Number | JB15HAP-2B | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACT SPST-NO 0.125A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43817 pcs | Data sheet | JB15HAP-2B.pdf |
| Termination Style | PC Pin | Switch Travel | 0.30mm |
| Switch Function | Off-Mom | Series | JB |
| Packaging | Bulk | Outline | 10.00mm x 10.00mm |
| Other Names | 360-2636 JB15HAP-2B-ND JB15HAP2B Q1796866 |
Operating Temperature | -25°C ~ 70°C |
| Operating Force | 265gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Process Sealed | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.125A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Square Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 14.70mm |
