BNX005-01

Murata Electronics

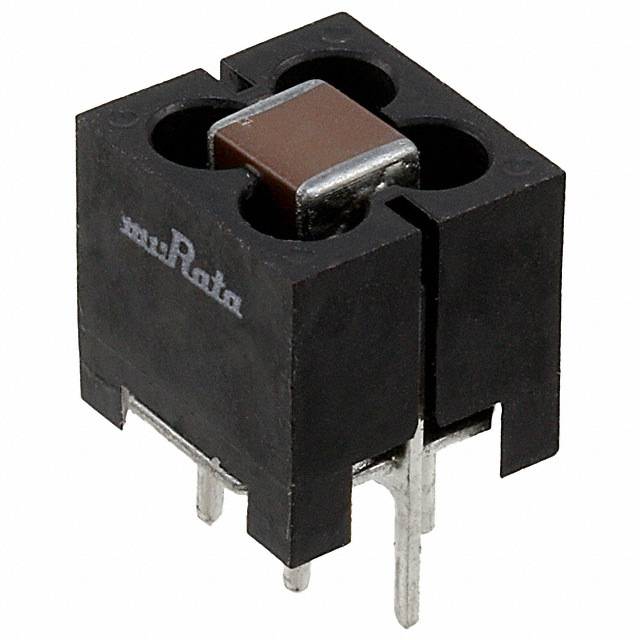

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BNX005-01
Manufacturer/Brand:	Murata Electronics
Product description	FILTER LC TH
Datasheets:	BNX005-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18358 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18358 pcs

Reference Price (In US Dollars)

1 pcs: $4.275

10 pcs: $3.643

25 pcs: $2.827

50 pcs: $2.692

100 pcs: $2.534

250 pcs: $2.296

500 pcs: $2.217

1000 pcs: $2.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.275

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BNX005-01

Part Number	BNX005-01	Manufacturer	Murata Electronics
Description	FILTER LC TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18358 pcs	Data sheet	BNX005-01.pdf
Voltage - Rated	50V	Values	-
Type	Low Pass	Technology	LC
Size / Dimension	0.472" L x 0.433" W (12.00mm x 11.00mm)	Series	EMIFIL®, BNX
Resistance - Channel (Ohms)	-	Packaging	Bulk
Package / Case	Block, 4 Lead	Other Names	490-7028 BNX005-01-ND BNX00501
Operating Temperature	-30°C ~ 85°C	Number of Channels	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.531" (13.50mm)	Filter Order	5th
ESD Protection	No	Detailed Description	LC EMI Filter 5th Order Low Pass 2 Channel 15A Block, 4 Lead
Current	15A	Center / Cutoff Frequency	-
Attenuation Value	40dB @ 1MHz ~ 1GHz	Applications	Data Lines for Mobile Devices
