9976-0-00-15-00-00-03-0

Mill-Max

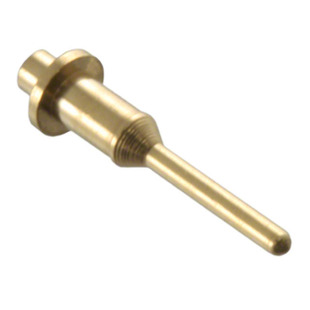

Image may be representation. See specifications for product details.

Product Overview

Part Number:	9976-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.018DIA GOLD
Datasheets:	1.9976-0-00-15-00-00-03-0.pdf 2.9976-0-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	202898 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 202898 pcs

Reference Price (In US Dollars)

1 pcs: $0.233

10 pcs: $0.218

25 pcs: $0.196

50 pcs: $0.175

100 pcs: $0.167

250 pcs: $0.153

500 pcs: $0.146

1000 pcs: $0.12

2500 pcs: $0.109

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.233

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 9976-0-00-15-00-00-03-0

Part Number	9976-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.018DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	202898 pcs	Data sheet	1.9976-0-00-15-00-00-03-0.pdf 2.9976-0-00-15-00-00-03-0.pdf
Termination	Press-Fit	Terminal Type	PC Pin
Terminal Style	Single End	Series	9976
Pin Size - Below Flange	0.030" (0.76mm) Dia	Pin Size - Above Flange	0.018" (0.46mm) Dia
Packaging	Bulk	Other Names	9976-000150000030 9976-000150000030-ND 9976000150000030 ED11523 Q4870740 Q4977173 Q5476195 Q5869412
Mounting Type	Through Hole	Mounting Hole Diameter	0.038" (0.97mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.240" (6.10mm)
Length - Below Flange	-	Length - Above Flange	0.205" (5.21mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.060" (1.52mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
