Mill-Max

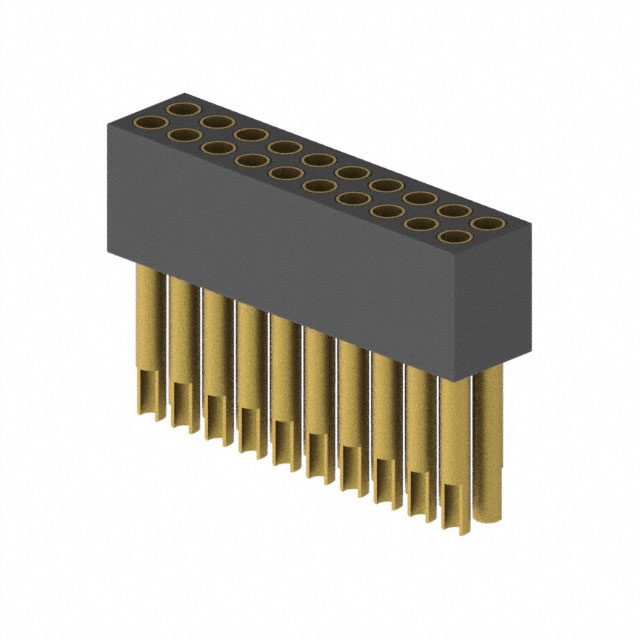

| Part Number | 853-13-020-10-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER CUP SOCKET; .050" PITCH; | Lead Free Status / RoHS Status | |
| Quantity Available | 21161 pcs | Data sheet | 1.853-13-020-10-003000.pdf2.853-13-020-10-003000.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Style | Board to Board | Series | 853 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Other Names | ED10354 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Insulation Material | Thermoplastic |
| Insulation Height | 0.149" (3.78mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector Through Hole |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.191" (4.85mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
