Mill-Max
| Part Number | 802-10-004-30-052000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 4POS 0.100" SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27766 pcs | Data sheet | 1.802-10-004-30-052000.pdf2.802-10-004-30-052000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 2 Wall |
| Series | 802 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 8021000430052000 ED1108 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.271" (6.88mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |

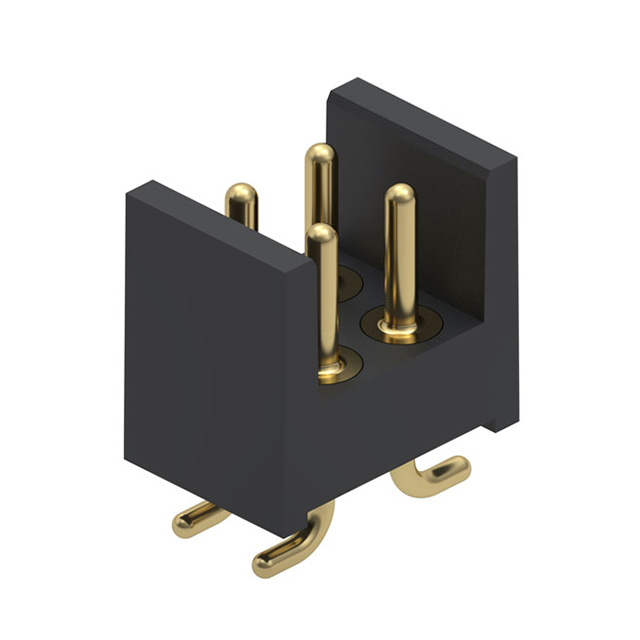

| Detailed Description | Connector Header Surface Mount 4 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
