3922-0-01-15-00-00-08-0

Mill-Max

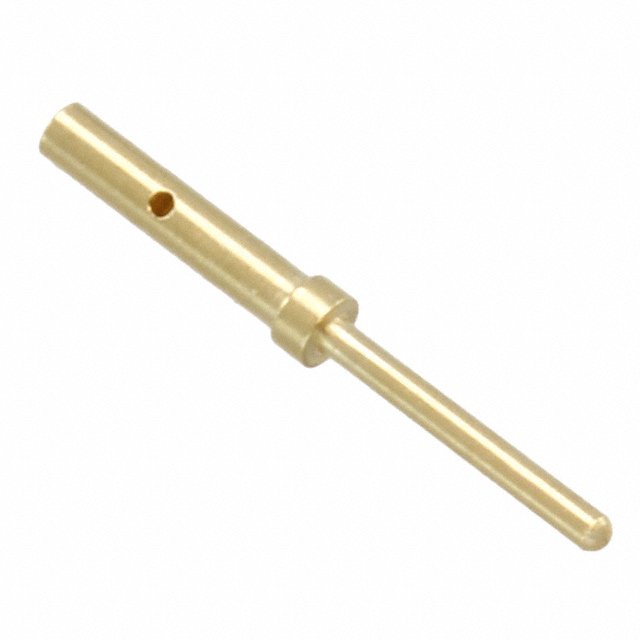

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3922-0-01-15-00-00-08-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.030DIA GOLD
Datasheets:	1.3922-0-01-15-00-00-08-0.pdf 2.3922-0-01-15-00-00-08-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	457383 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 457383 pcs

Reference Price (In US Dollars)

1 pcs: $0.102

10 pcs: $0.096

25 pcs: $0.082

50 pcs: $0.07

100 pcs: $0.067

250 pcs: $0.06

500 pcs: $0.058

1000 pcs: $0.048

2500 pcs: $0.044

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.102

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3922-0-01-15-00-00-08-0

Part Number	3922-0-01-15-00-00-08-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.030DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	457383 pcs	Data sheet	1.3922-0-01-15-00-00-08-0.pdf 2.3922-0-01-15-00-00-08-0.pdf
Termination	Crimp	Terminal Type	PC Pin
Terminal Style	Wire	Series	3922
Pin Size - Below Flange	0.047" (1.19mm) Dia	Pin Size - Above Flange	0.030" (0.76mm) Dia
Packaging	Bulk	Other Names	3922001150000080 ED1323
Mounting Type	Free Hanging (In-Line)	Mounting Hole Diameter	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.532" (13.51mm)
Length - Below Flange	0.234" (5.94mm)	Length - Above Flange	0.267" (6.78mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.061" (1.55mm)
Detailed Description	PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.030" (0.76mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
