3620-2-32-15-00-00-08-0

Mill-Max

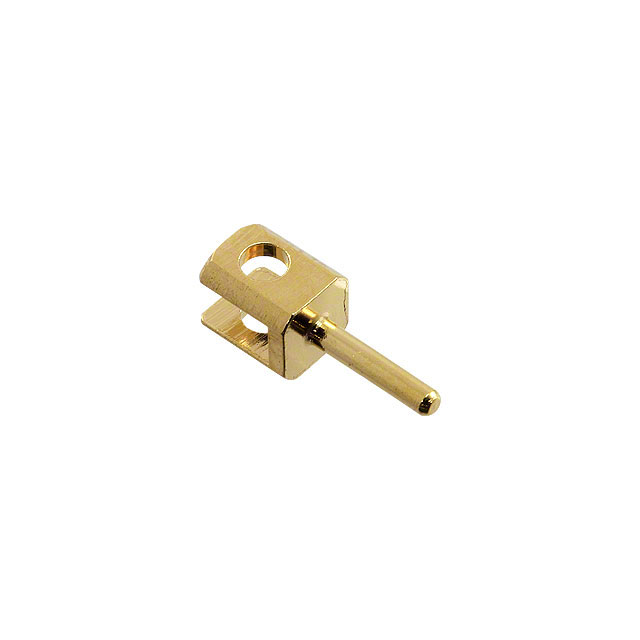

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3620-2-32-15-00-00-08-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.040DIA GOLD
Datasheets:	1.3620-2-32-15-00-00-08-0.pdf 2.3620-2-32-15-00-00-08-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	237857 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 237857 pcs

Reference Price (In US Dollars)

1 pcs: $0.217

10 pcs: $0.202

25 pcs: $0.182

50 pcs: $0.161

100 pcs: $0.155

250 pcs: $0.141

500 pcs: $0.135

1000 pcs: $0.111

2500 pcs: $0.101

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.217

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3620-2-32-15-00-00-08-0

Part Number	3620-2-32-15-00-00-08-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.040DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	237857 pcs	Data sheet	1.3620-2-32-15-00-00-08-0.pdf 2.3620-2-32-15-00-00-08-0.pdf
Termination	Rivet	Terminal Type	PC Pin
Terminal Style	Single End	Series	3620
Pin Size - Below Flange	-	Pin Size - Above Flange	0.040" (1.02mm) Dia
Packaging	Bulk	Other Names	3620-232150000080 3620-232150000080-ND 3620232150000080 ED1278
Mounting Type	Board Edge	Mounting Hole Diameter	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.356" (9.04mm)
Length - Below Flange	-	Length - Above Flange	0.200" (5.08mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	-
Detailed Description	PC Pin Terminal Connector Board Edge Gold 0.040" (1.02mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	0.062" (1.57mm)
