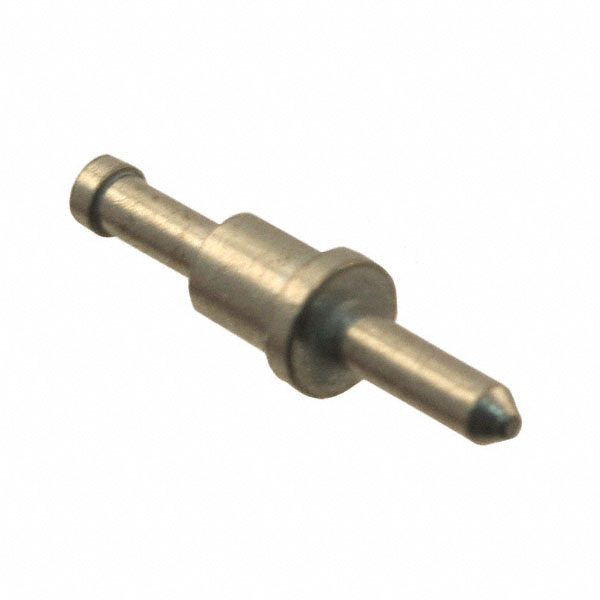

Part Number | 3156-2-00-01-00-00-08-0 | Manufacturer | Mill-Max |
---|---|---|---|
Description | TERM TURRET PIN L=3.81MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 124123 pcs | Data sheet | 1.3156-2-00-01-00-00-08-0.pdf2.3156-2-00-01-00-00-08-0.pdf |
Termination | Swage | Terminal Type | Double End, Pin |
Staking Side OD | - | Staking Side ID | - |
Series | 3156 | Other Names | 3156-200010000080 3156200010000080 Q5396740U |
Number of Turrets | Single | Mounting Type | Through Hole |
Mounting Hole Diameter | 0.076" (1.93mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Insulation | - | Length - Overall | 0.379" (9.63mm) |
Length - Below Flange | 0.207" (5.26mm) | Length - Above Board | 0.172" (4.37mm) |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Color | - |
Insulation | Non-Insulated | Flange Diameter | 0.093" (2.36mm) |
Diameter - Turret Head | 0.050" (1.27mm) | Detailed Description | Terminal Turret Connector Double End, Pin 0.172" (4.37mm) Tin-Lead |
Contact Material | Brass Alloy | Contact Finish Thickness | 200.0µin (5.08µm) |
Contact Finish | Tin-Lead | Board Thickness | 0.062" (1.57mm) |
