3137-1-00-15-00-00-08-0

Mill-Max

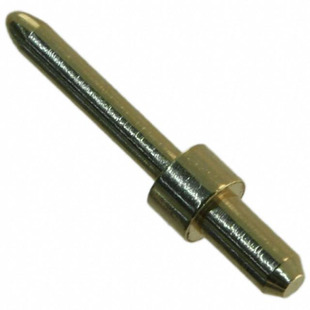

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3137-1-00-15-00-00-08-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.040DIA GOLD
Datasheets:	3137-1-00-15-00-00-08-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	858599 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 858599 pcs

Reference Price (In US Dollars)

1 pcs: $0.064

10 pcs: $0.059

25 pcs: $0.051

50 pcs: $0.044

100 pcs: $0.041

250 pcs: $0.036

500 pcs: $0.035

1000 pcs: $0.028

2500 pcs: $0.026

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.064

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3137-1-00-15-00-00-08-0

Part Number	3137-1-00-15-00-00-08-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.040DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	858599 pcs	Data sheet	3137-1-00-15-00-00-08-0.pdf
Termination	Solder	Terminal Type	PC Pin
Terminal Style	Double End	Series	3137
Pin Size - Below Flange	0.030" (0.76mm) Dia	Pin Size - Above Flange	0.040" (1.02mm) Dia
Packaging	Bulk	Other Names	3137-100150000080 3137-100150000080-ND 3137100150000080 ED1083
Mounting Type	Through Hole	Mounting Hole Diameter	0.043" (1.09mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.302" (7.67mm)
Length - Below Flange	0.180" (4.57mm)	Length - Above Flange	0.082" (2.08mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.062" (1.57mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	0.062" (1.57mm)
