3117-1-00-21-00-00-08-0

Mill-Max

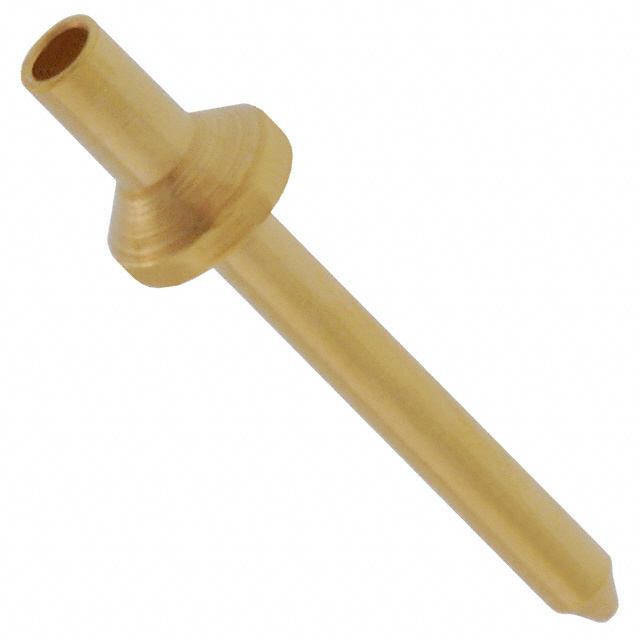

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3117-1-00-21-00-00-08-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.024DIA GOLD
Datasheets:	3117-1-00-21-00-00-08-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	758702 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 758702 pcs

Reference Price (In US Dollars)

1 pcs: $0.081

10 pcs: $0.075

25 pcs: $0.064

50 pcs: $0.056

100 pcs: $0.052

250 pcs: $0.046

500 pcs: $0.044

1000 pcs: $0.036

2500 pcs: $0.033

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.081

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3117-1-00-21-00-00-08-0

Part Number	3117-1-00-21-00-00-08-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.024DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	758702 pcs	Data sheet	3117-1-00-21-00-00-08-0.pdf
Termination	Swage	Terminal Type	PC Pin
Terminal Style	Single End	Series	3117
Pin Size - Below Flange	-	Pin Size - Above Flange	0.024" (0.61mm) Dia
Packaging	Bulk	Other Names	3.1171E+15 3117-1-00-21-00-00-0 3117-1-00-21-0000080 3117100210000080 ED5055
Mounting Type	Through Hole	Mounting Hole Diameter	0.035" (0.89mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.260" (6.60mm)
Length - Below Flange	0.047" (1.19mm)	Length - Above Flange	0.188" (4.78mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.060" (1.52mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.024" (0.61mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	20.0µin (0.51µm)	Contact Finish	Gold
Board Thickness	0.031" (0.79mm)
