1938-0-00-15-00-00-03-0

Mill-Max

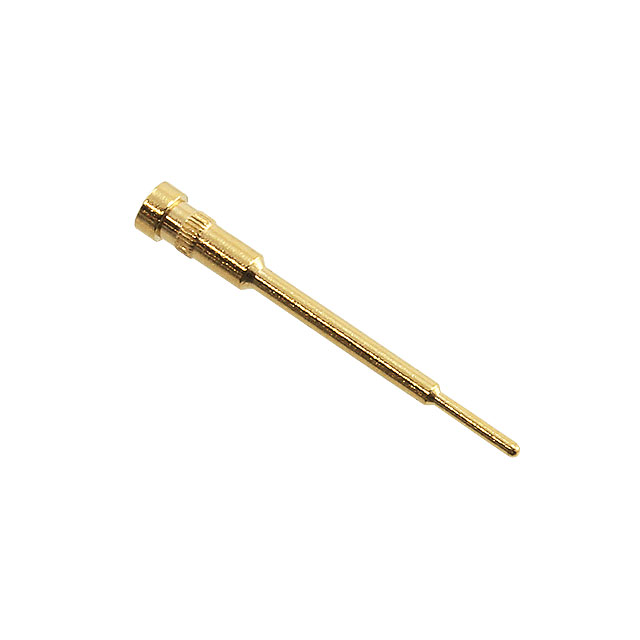

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1938-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.020DIA GOLD
Datasheets:	1.1938-0-00-15-00-00-03-0.pdf 2.1938-0-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	427523 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 427523 pcs

Reference Price (In US Dollars)

1 pcs: $0.106

10 pcs: $0.099

25 pcs: $0.085

50 pcs: $0.072

100 pcs: $0.07

250 pcs: $0.063

500 pcs: $0.06

1000 pcs: $0.05

2500 pcs: $0.045

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.106

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1938-0-00-15-00-00-03-0

Part Number	1938-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.020DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	427523 pcs	Data sheet	1.1938-0-00-15-00-00-03-0.pdf 2.1938-0-00-15-00-00-03-0.pdf
Termination	Press-Fit, Knurled	Terminal Type	PC Pin
Terminal Style	Single End	Series	1938
Pin Size - Below Flange	-	Pin Size - Above Flange	0.020" (0.51mm) Dia
Packaging	Bulk	Other Names	ED1293
Mounting Type	Through Hole	Mounting Hole Diameter	0.057" (1.45mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.567" (14.40mm)
Length - Below Flange	-	Length - Above Flange	0.537" (13.64mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.072" (1.83mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
