0522-0-00-15-00-00-03-0

Mill-Max

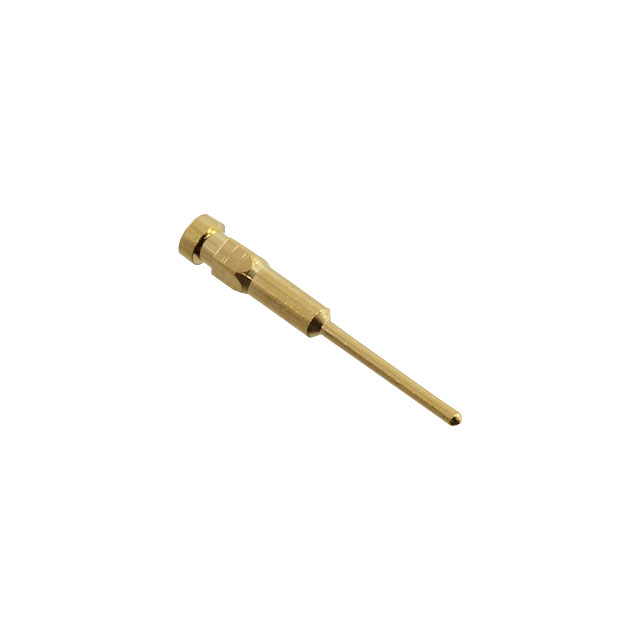

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.018DIA GOLD
Datasheets:	1.0522-0-00-15-00-00-03-0.pdf 2.0522-0-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	658872 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 658872 pcs

Reference Price (In US Dollars)

1 pcs: $0.084

10 pcs: $0.078

25 pcs: $0.066

50 pcs: $0.058

100 pcs: $0.054

250 pcs: $0.048

500 pcs: $0.046

1000 pcs: $0.037

2500 pcs: $0.034

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.084

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522-0-00-15-00-00-03-0

Part Number	0522-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.018DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	658872 pcs	Data sheet	1.0522-0-00-15-00-00-03-0.pdf 2.0522-0-00-15-00-00-03-0.pdf
Termination	Press-Fit, Pentagon	Terminal Type	PC Pin
Terminal Style	Single End	Series	0522
Pin Size - Below Flange	-	Pin Size - Above Flange	0.018" (0.46mm) Dia
Packaging	Bulk	Other Names	0522-000150000030 0522-000150000030-ND 0522000150000030 522000150000030 ED1242
Mounting Type	Through Hole	Mounting Hole Diameter	0.042" (1.07mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.360" (9.14mm)
Length - Below Flange	-	Length - Above Flange	0.340" (8.64mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.050" (1.27mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
