0040-1-17-01-30-27-02-0

Mill-Max

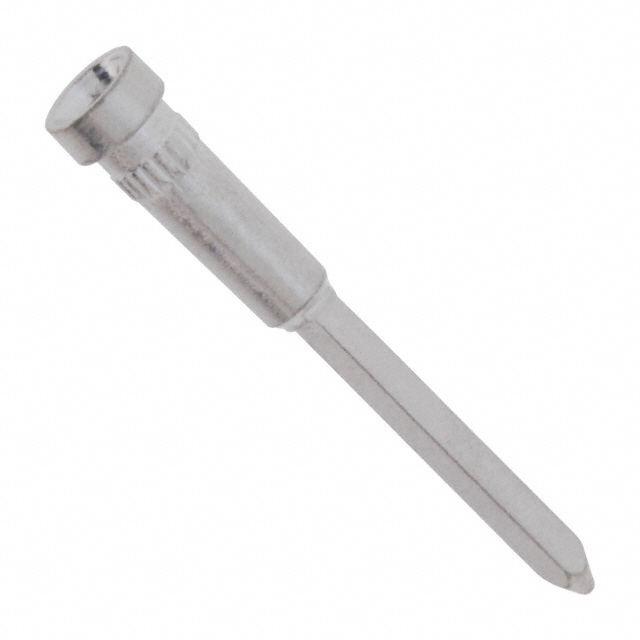

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0040-1-17-01-30-27-02-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.025 PRESSFIT
Datasheets:	1.0040-1-17-01-30-27-02-0.pdf 2.0040-1-17-01-30-27-02-0.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	393054 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 393054 pcs

Reference Price (In US Dollars)

1 pcs: $0.114

10 pcs: $0.107

25 pcs: $0.092

50 pcs: $0.078

100 pcs: $0.075

250 pcs: $0.067

500 pcs: $0.064

1000 pcs: $0.054

2500 pcs: $0.049

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.114

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0040-1-17-01-30-27-02-0

Part Number	0040-1-17-01-30-27-02-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.025 PRESSFIT	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	393054 pcs	Data sheet	1.0040-1-17-01-30-27-02-0.pdf 2.0040-1-17-01-30-27-02-0.pdf
Termination	Press-Fit	Tail Type	Wire Wrap
Tail Diameter	0.025" (0.64mm) Square	Socket Depth	0.162" (4.12mm)
Series	40	Pin Hole Diameter	0.043" (1.09mm)
Packaging	Bulk	Other Names	0040-1-17-01-3027020 0040117013027020 4.0117E+13 40117013027020 ED5003 EPM 00000002 EPM 00000002-ND
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.057" (1.45mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.460" (11.68mm)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insertion Force	-	Flange Diameter	0.072" (1.83mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
