Microsemi

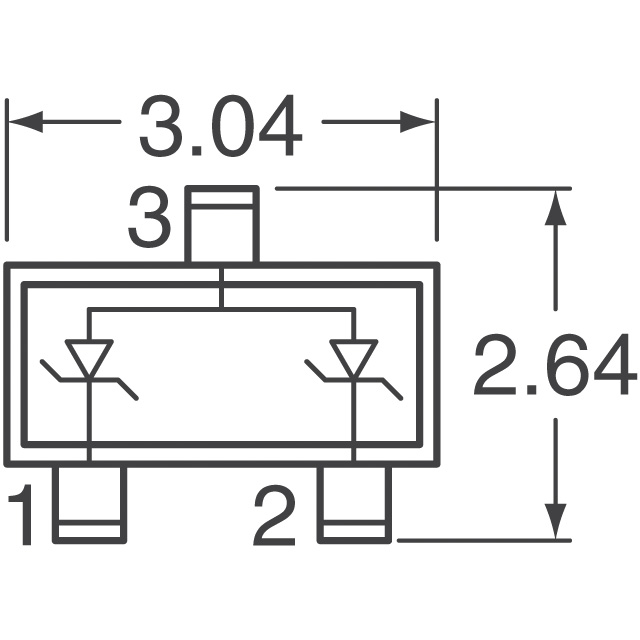

| Part Number | SM05/TR7 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TVS DIODE 5V 9.8V SOT23-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 36800 pcs | Data sheet | SM05/TR7.pdf |
| Voltage - Reverse Standoff (Typ) | 5V | Voltage - Clamping (Max) @ Ipp | 9.8V |
| Voltage - Breakdown (Min) | 6V | Unidirectional Channels | 2 |
| Type | Zener | Supplier Device Package | SOT-23-3 |
| Series | - | Power Line Protection | No |
| Power - Peak Pulse | 300W | Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | Other Names | SM05/TR7CT SM05E3CT SM05E3CT-ND SM05MSCT SM05MSCT-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | Capacitance @ Frequency | 400pF @ 1MHz, 200pF @ 1MHz |
| Bidirectional Channels | 1 | Base Part Number | SM05 |
| Applications | General Purpose |
