JANTX2N3501UB

Microsemi

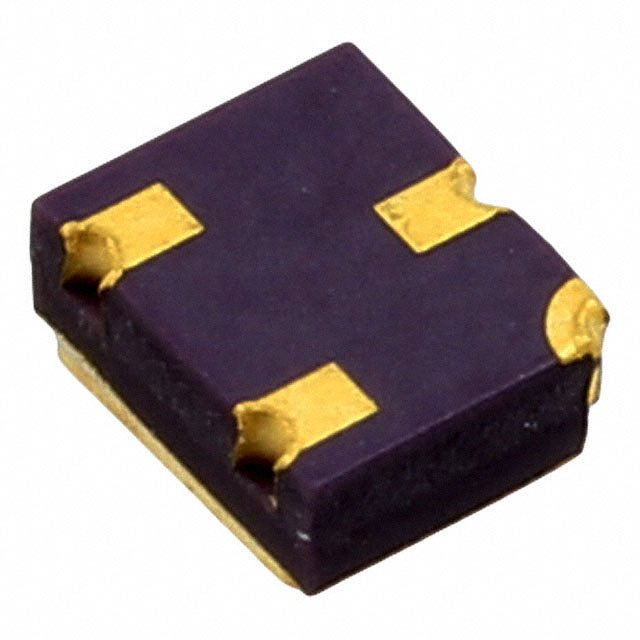

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANTX2N3501UB
Manufacturer/Brand:	Microsemi
Product description	TRANS NPN 150V 0.3A
Datasheets:	JANTX2N3501UB.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3247 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3247 pcs

Reference Price (In US Dollars)

100 pcs: $9.905

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.905

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANTX2N3501UB

Part Number	JANTX2N3501UB	Manufacturer	Microsemi
Description	TRANS NPN 150V 0.3A	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3247 pcs	Data sheet	JANTX2N3501UB.pdf
Voltage - Collector Emitter Breakdown (Max)	150V	Vce Saturation (Max) @ Ib, Ic	400mV @ 15mA, 150mA
Transistor Type	NPN	Supplier Device Package	UB
Series	Military, MIL-PRF-19500/366	Power - Max	500mW
Packaging	Bulk	Package / Case	3-SMD, No Lead
Other Names	1086-2702 1086-2702-MIL	Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Frequency - Transition	-	Detailed Description	Bipolar (BJT) Transistor NPN 150V 300mA 500mW Surface Mount UB
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V	Current - Collector Cutoff (Max)	10µA (ICBO)
Current - Collector (Ic) (Max)	300mA
