APTGT75A120T1G

Microsemi

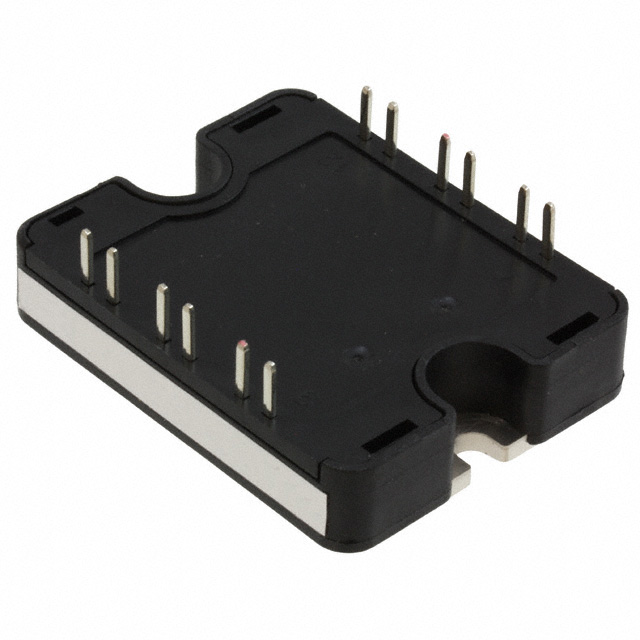

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGT75A120T1G
Manufacturer/Brand:	Microsemi
Product description	POWER MOD IGBT TRENCH PH LEG SP1
Datasheets:	1.APTGT75A120T1G.pdf 2.APTGT75A120T1G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2502 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2502 pcs

Reference Price (In US Dollars)

100 pcs: $15.693

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$15.693

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGT75A120T1G

Part Number	APTGT75A120T1G	Manufacturer	Microsemi
Description	POWER MOD IGBT TRENCH PH LEG SP1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2502 pcs	Data sheet	1.APTGT75A120T1G.pdf 2.APTGT75A120T1G.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Supplier Device Package	SP1	Series	-
Power - Max	357W	Package / Case	SP1
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	Yes
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	5.34nF @ 25V	Input	Standard
IGBT Type	Trench Field Stop	Detailed Description	IGBT Module Trench Field Stop Half Bridge 1200V 110A 357W Chassis Mount SP1
Current - Collector Cutoff (Max)	250µA	Current - Collector (Ic) (Max)	110A
Configuration	Half Bridge
