APTGT50TL601G

Microsemi

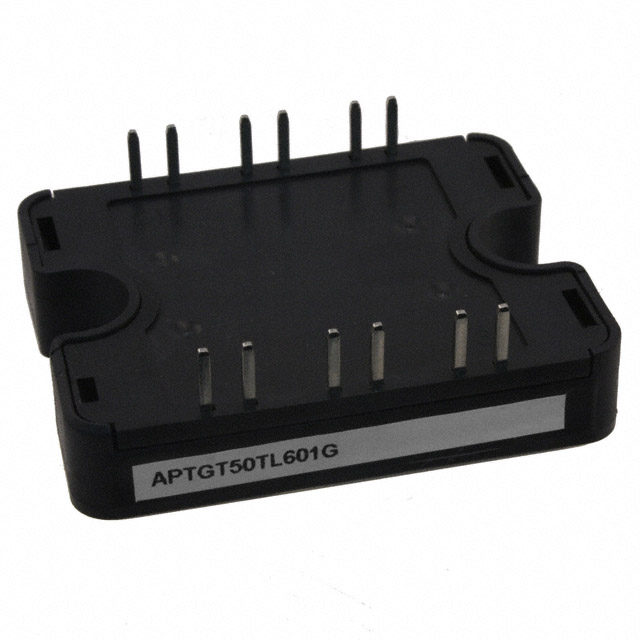

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGT50TL601G
Manufacturer/Brand:	Microsemi
Product description	POWER MODULE IGBT 600V 50A SP1
Datasheets:	1.APTGT50TL601G.pdf 2.APTGT50TL601G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1813 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1813 pcs

Reference Price (In US Dollars)

1 pcs: $20.12

10 pcs: $18.935

25 pcs: $17.752

100 pcs: $16.924

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$20.12

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGT50TL601G

Part Number	APTGT50TL601G	Manufacturer	Microsemi
Description	POWER MODULE IGBT 600V 50A SP1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1813 pcs	Data sheet	1.APTGT50TL601G.pdf 2.APTGT50TL601G.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 50A
Supplier Device Package	SP1	Series	-
Power - Max	176W	Package / Case	SP1
Other Names	APTGT50TL601GMI APTGT50TL601GMI-ND	Operating Temperature	-40°C ~ 175°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	3.15nF @ 25V
Input	Standard	IGBT Type	Trench Field Stop
Detailed Description	IGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1	Current - Collector Cutoff (Max)	250µA
Current - Collector (Ic) (Max)	80A	Configuration	Three Level Inverter
