APTGL180A120T3AG

Microsemi

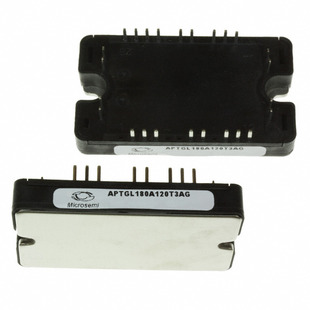

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGL180A120T3AG
Manufacturer/Brand:	Microsemi
Product description	IGBT ARRAY 1200V 230A 940W SP3
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1272 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1272 pcs

Reference Price (In US Dollars)

100 pcs: $24.528

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$24.528

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGL180A120T3AG

Part Number	APTGL180A120T3AG	Manufacturer	Microsemi
Description	IGBT ARRAY 1200V 230A 940W SP3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1272 pcs	Data sheet
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 150A
Supplier Device Package	SP3	Series	-
Power - Max	940W	Package / Case	SP3
Other Names	APTGL180A120T3AGMP APTGL180A120T3AGMP-ND	Operating Temperature	-40°C ~ 175°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	9.3nF @ 25V
Input	Standard	IGBT Type	Trench Field Stop
Detailed Description	IGBT Module Trench Field Stop Half Bridge 1200V 230A 940W Chassis Mount SP3	Current - Collector Cutoff (Max)	300µA
Current - Collector (Ic) (Max)	230A	Configuration	Half Bridge
