APTGF150DU120TG

Microsemi

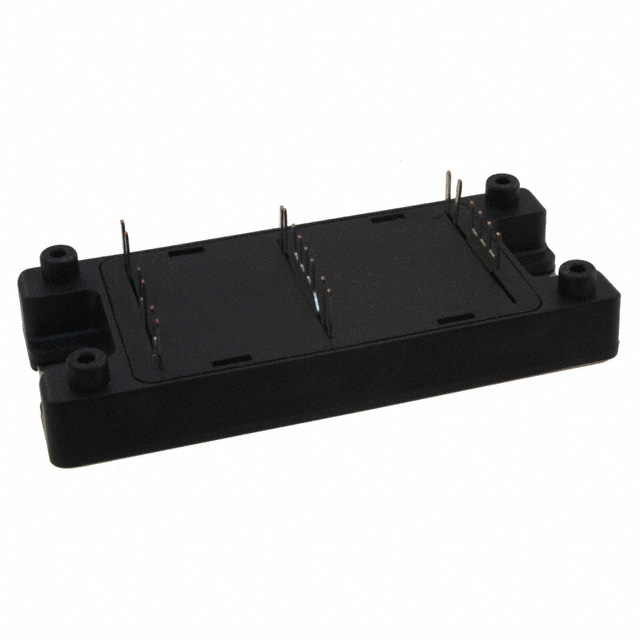

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGF150DU120TG
Manufacturer/Brand:	Microsemi
Product description	IGBT MODULE NPT DUAL 1200V SP4
Datasheets:	1.APTGF150DU120TG.pdf 2.APTGF150DU120TG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	926 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 926 pcs

Reference Price (In US Dollars)

1 pcs: $37.539

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$37.539

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGF150DU120TG

Part Number	APTGF150DU120TG	Manufacturer	Microsemi
Description	IGBT MODULE NPT DUAL 1200V SP4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	926 pcs	Data sheet	1.APTGF150DU120TG.pdf 2.APTGF150DU120TG.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	3.7V @ 15V, 150A
Supplier Device Package	SP4	Series	-
Power - Max	961W	Package / Case	SP4
Other Names	APTGF150DU120TGMP-ND	Operating Temperature	-
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	10.2nF @ 25V	Input	Standard
IGBT Type	NPT	Detailed Description	IGBT Module NPT Dual, Common Source 1200V 200A 961W Chassis Mount SP4
Current - Collector Cutoff (Max)	350µA	Current - Collector (Ic) (Max)	200A
Configuration	Dual, Common Source
