APT22F80S

Microsemi

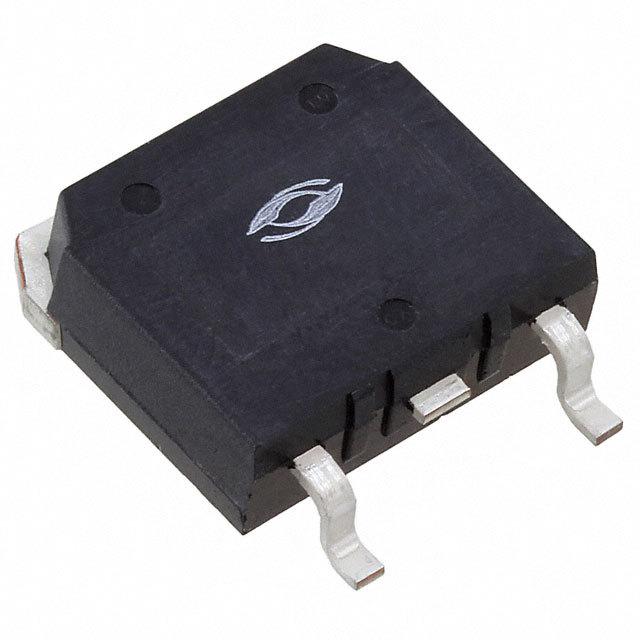

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APT22F80S
Manufacturer/Brand:	Microsemi
Product description	MOSFET N-CH 800V 22A D3PAK
Datasheets:	APT22F80S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9482 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9482 pcs

Reference Price (In US Dollars)

60 pcs: $3.914

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.914

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APT22F80S

Part Number	APT22F80S	Manufacturer	Microsemi
Description	MOSFET N-CH 800V 22A D3PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9482 pcs	Data sheet	APT22F80S.pdf
Vgs(th) (Max) @ Id	5V @ 1mA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	D3Pak
Series	POWER MOS 8™	Rds On (Max) @ Id, Vgs	430 mOhm @ 12A, 10V
Power Dissipation (Max)	625W (Tc)	Packaging	Tube
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	4595pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	150nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	800V
Detailed Description	N-Channel 800V 23A (Tc) 625W (Tc) Surface Mount D3Pak	Current - Continuous Drain (Id) @ 25°C	23A (Tc)
