HAL503S-E

Micronas

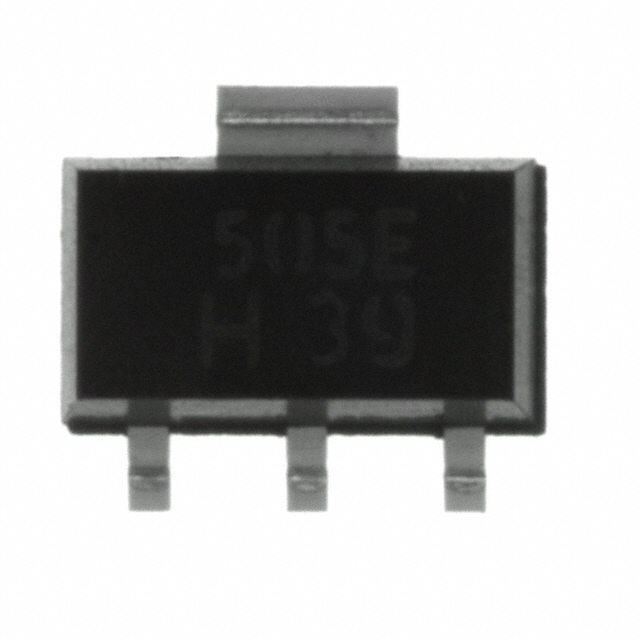

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HAL503S-E
Manufacturer/Brand:	Micronas
Product description	MAGNETIC SWITCH LATCH SOT89B-1
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4884 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4884 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HAL503S-E

Part Number	HAL503S-E	Manufacturer	Micronas
Description	MAGNETIC SWITCH LATCH SOT89B-1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4884 pcs	Data sheet
Voltage - Supply	3.8 V ~ 24 V	Test Condition	25°C
Technology	Hall Effect	Supplier Device Package	SOT-89B-1
Series	HAL®	Sensing Range	10mT Trip, -10mT Release
Polarization	South Pole	Packaging	Tape & Reel (TR)
Package / Case	TO-243AA, Variant	Output Type	Open Drain
Other Names	HAL503S-ETR	Operating Temperature	-40°C ~ 140°C (TA)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Latch
Features	Temperature Compensated	Detailed Description	Digital Switch Latch Open Drain Hall Effect SOT-89B-1
Current - Supply (Max)	4.2mA	Current - Output (Max)	20mA
