ATA6823C-PHQW-1

Micrel / Microchip Technology

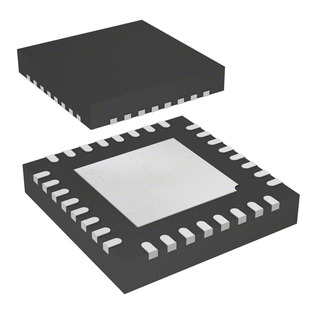

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATA6823C-PHQW-1
Manufacturer/Brand:	Micrel / Microchip Technology
Product description	IC MOTOR CONTROLLER PAR 32QFN
Datasheets:	ATA6823C-PHQW-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41702 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 41702 pcs

Reference Price (In US Dollars)

1 pcs: $0.788

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.788

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATA6823C-PHQW-1

Part Number	ATA6823C-PHQW-1	Manufacturer	Micrel / Microchip Technology
Description	IC MOTOR CONTROLLER PAR 32QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41702 pcs	Data sheet	ATA6823C-PHQW-1.pdf
Voltage - Supply	6.5 V ~ 22.7 V	Voltage - Load	-
Technology	Power MOSFET	Supplier Device Package	32-QFN (7x7)
Step Resolution	-	Series	-
Packaging	Cut Tape (CT)	Package / Case	32-VQFN Exposed Pad
Output Configuration	Pre-Driver - Half Bridge (2)	Other Names	ATA6823C-PHQW-1CT
Operating Temperature	-40°C ~ 125°C (TA)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	LIN, PWM	Function	Controller - Commutation, Direction Management
Detailed Description	Motor Driver Power MOSFET LIN, PWM 32-QFN (7x7)	Current - Output	-
Base Part Number	ATA6823	Applications	General Purpose
