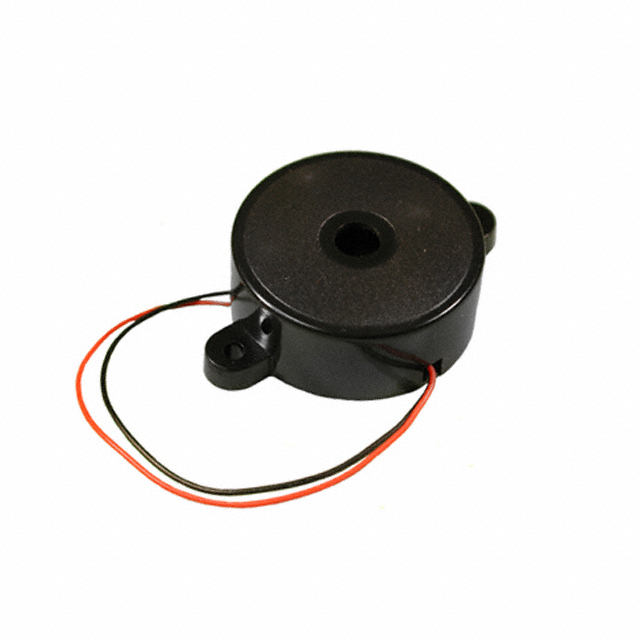

Part Number | PT-2060WQ | Manufacturer | Mallory Sonalert Products |
---|---|---|---|
Description | AUDIO PIEZO XDCR 1-30V CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 78269 pcs | Data sheet | 1.PT-2060WQ.pdf2.PT-2060WQ.pdf |
Voltage Range | 1 ~ 30V | Voltage - Rated | 5V |
Termination | Wire Leads | Technology | Piezo |
Sound Pressure Level (SPL) | 90dB @ 5V, 10cm | Size / Dimension | 0.945" Dia (24.00mm) |
Series | PT | Ratings | - |
Port Location | Top | Packaging | Bulk |
Other Names | 458-1261 PT-2060WQ-ND PT2060WQ |
Operating Temperature | -20°C ~ 70°C |
Operating Mode | Single Tone | Mounting Type | Panel Mount, Flange |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Peak-Peak Signal |
Height - Seated (Max) | 0.205" (5.20mm) | Frequency | 6kHz |
Duration | - | Driver Circuitry | Transducer, Externally Driven |
Detailed Description | Buzzers Transducer, Externally Driven Piezo 5V 1.5mA 6kHz 90dB @ 5V, 10cm Panel Mount, Flange Wire Leads | Current - Supply | 1.5mA |
Approvals | - |
