METZ CONNECT

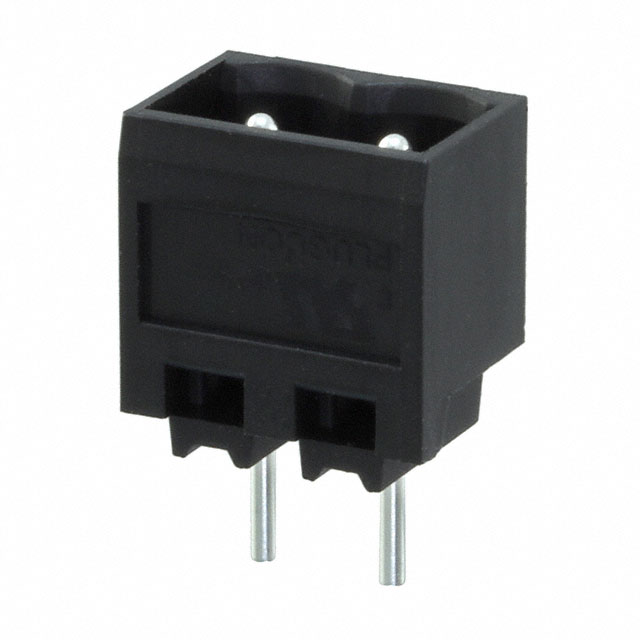

| Part Number | 31020102 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SHROUDED HEADER, VERTICAL, PCB, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170907 pcs | Data sheet | 31020102.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | - |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1849-1146 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.480" (12.20mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.205" (5.21mm) |
| Contact Mating Finish | Gold, Nickel Alloy | Contact Material | Copper Beryllium |
| Color | Black |
