SWC10056AA120-500

Laird Technologies

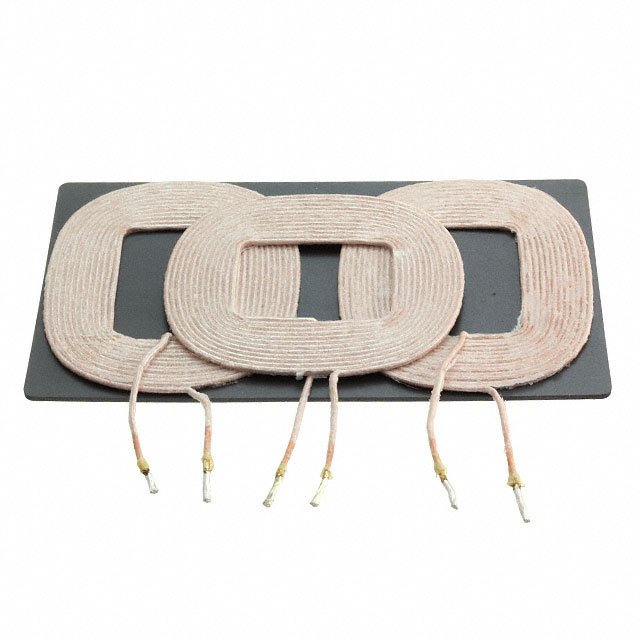

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SWC10056AA120-500
Manufacturer/Brand:	Laird Technologies
Product description	TRANSMITTER 3 COIL 1 LAYER
Datasheets:	1.SWC10056AA120-500.pdf 2.SWC10056AA120-500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10585 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10585 pcs

Reference Price (In US Dollars)

1 pcs: $4.289

10 pcs: $3.968

100 pcs: $3.217

500 pcs: $3.003

1000 pcs: $2.853

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SWC10056AA120-500

Part Number	SWC10056AA120-500	Manufacturer	Laird Technologies
Description	TRANSMITTER 3 COIL 1 LAYER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10585 pcs	Data sheet	1.SWC10056AA120-500.pdf 2.SWC10056AA120-500.pdf
Type	3 Coil, 1 Layer	Tolerance	±10%
Series	SWC	Q @ Freq	90 @ 100kHz
Other Names	240-2782	Operating Temperature	-40°C ~ 125°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	12.5µH, 11.5µH, 12.5µH
Function	Transmitter	Frequency - Self Resonant	-
Detailed Description	3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 65 mOhm Max	DC Resistance (DCR)	65 mOhm Max
Current Rating	-	Current - Saturation	-
