LAPIS Semiconductor
| Part Number | RZR020P01TL | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 12V 2A TSMT3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 380466 pcs | Data sheet | RZR020P01TL.pdf |
| Vgs(th) (Max) @ Id | 1V @ 1mA | Vgs (Max) | ±10V |

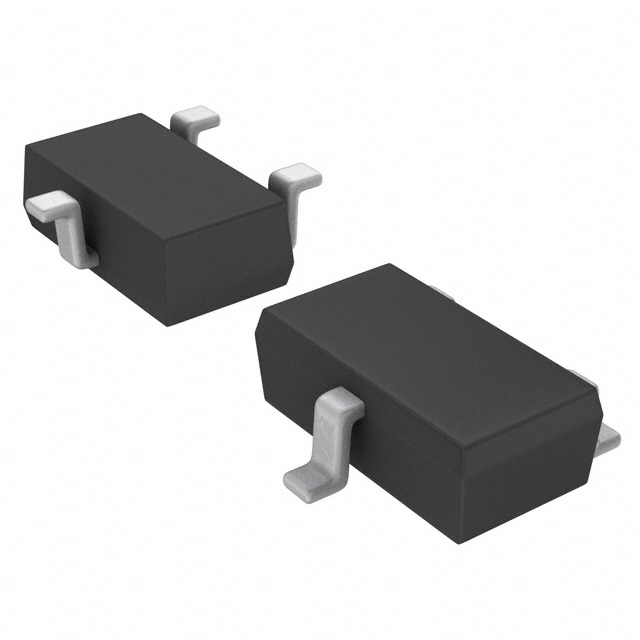

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TSMT3 |
| Series | - | Rds On (Max) @ Id, Vgs | 105 mOhm @ 2A, 4.5V |
| Power Dissipation (Max) | 1W (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | SC-96 | Other Names | RZR020P01MGTL RZR020P01TL-ND RZR020P01TLTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 770pF @ 6V | Gate Charge (Qg) (Max) @ Vgs | 6.5nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Drain to Source Voltage (Vdss) | 12V |
| Detailed Description | P-Channel 12V 2A (Ta) 1W (Ta) Surface Mount TSMT3 | Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
