QH8KA4TCR

LAPIS SemiconductorLAPIS Semiconductor

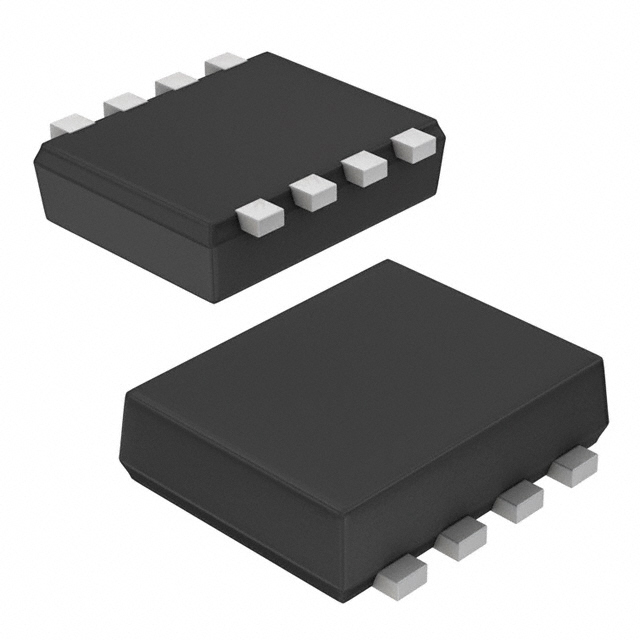

QH8KA4TCR Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: QH8KA4TCR
Manufacturer/Brand: LAPIS Semiconductor
Product description 30V NCH+NCH MIDDLE POWER MOSFET
Datasheets: 1.QH8KA4TCR.pdf2.QH8KA4TCR.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 130928 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 130928 pcs
Reference Price (In US Dollars)
1 pcs
$0.395
10 pcs
$0.348
100 pcs
$0.275
500 pcs
$0.214
1000 pcs
$0.169
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.395

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of QH8KA4TCR

Part Number QH8KA4TCR Manufacturer LAPIS Semiconductor
Description 30V NCH+NCH MIDDLE POWER MOSFET Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 130928 pcs Data sheet 1.QH8KA4TCR.pdf2.QH8KA4TCR.pdf
Vgs(th) (Max) @ Id 1.5V @ 1mA Supplier Device Package TSMT8
Series - Rds On (Max) @ Id, Vgs 17 mOhm @ 7A, 4.5V
Power - Max 1.5W Packaging Cut Tape (CT)
Package / Case 8-SMD, Flat Lead Other Names QH8KA4TCRCT
Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds 1400pF @ 10V Gate Charge (Qg) (Max) @ Vgs 12nC @ 4.5V
FET Type 2 N-Channel (Dual) FET Feature -
Drain to Source Voltage (Vdss) 30V Detailed Description Mosfet Array 2 N-Channel (Dual) 30V 9A 1.5W Surface Mount TSMT8
Current - Continuous Drain (Id) @ 25°C 9A
