MNR04M0APJ472

LAPIS SemiconductorLAPIS Semiconductor

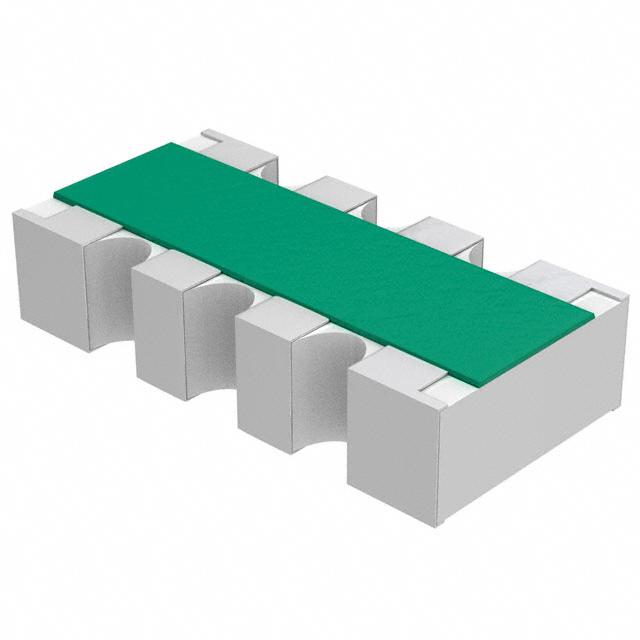

MNR04M0APJ472 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: MNR04M0APJ472
Manufacturer/Brand: LAPIS Semiconductor
Product description RES ARRAY 4 RES 4.7K OHM 0804
Datasheets: MNR04M0APJ472.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5604 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5604 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of MNR04M0APJ472

Part Number MNR04M0APJ472 Manufacturer LAPIS Semiconductor
Description RES ARRAY 4 RES 4.7K OHM 0804 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5604 pcs Data sheet MNR04M0APJ472.pdf
Tolerance ±5% Temperature Coefficient ±200ppm/°C
Supplier Device Package - Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Series MNR Resistor-Ratio-Drift -
Resistor Matching Ratio - Resistance (Ohms) 4.7k
Power Per Element 62.5mW Packaging Tape & Reel (TR)
Package / Case 0804, Convex, Long Side Terminals Other Names MNR04472RTR
Operating Temperature -55°C ~ 155°C Number of Resistors 4
Number of Pins 8 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 0.018" (0.45mm) Detailed Description 4.7k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
Circuit Type Isolated Applications Automotive AEC-Q200
